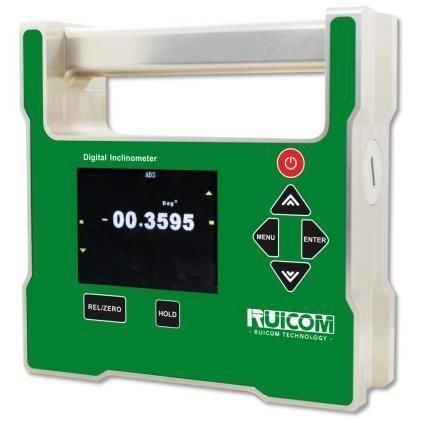

Single-axis inclinometer GDS850

MEMSportablehigh-precision

Product overview
The GDS850 is a handheld electronic inclinometer developed by RUICOM Technology on a high-precision tilt measurement platform. It integrates a MEMS sensor and a 32-bit microprocessor for high-resolution sampling, delivering 0.002° accuracy and 0.0005° resolution. The unit supports on-site data recording and playback, user zero calibration and is designed for precision leveling and measurement tasks in industrial environments.

Key features

• Measurement range: ±30°
• Accuracy: <0.002° (for angles <5°), <0.003° (5°–30°), RMS
• Resolution: 0.0005°
• On-site data save and playback
• User-adjustable zero calibration
• Dual strong magnetic measuring surfaces on the bottom
• 64-color luminous LCD for clear readings

Technical specifications

• Model: GDS850
• Measuring axis: single-axis
• Measurement modes: degrees or mm/m (configurable)
• LCD: 64-color true-color luminous display
• LCD viewable area: L60 × W45 mm
• Operating temperature: -10° to +70° C
• Operating humidity: up to 85% RH
• Power supply: 2 × AA batteries
• Battery continuous working time: approx. 6 h
• Vibration resistance: 10g@11ms, triaxial (half-sine)
• Shock resistance: 10grms, 10–100 Hz
• IP rating: IP54
• Housing material: anodized aluminum alloy
• Weight: 1200 g
• Dimensions: L140 × W140 × H45 mm

Dimensions & weight
Overall dimensions: L140 × W140 × H45 mm. LCD viewable area: L60 × W45 mm. Device weight: 1200 g.

Typical applications

• Precision leveling of platforms and benches
• Machine alignment and setup
• Calibration and verification in metrology labs
• Installation checks for industrial equipment
• Field inspections where compact, accurate tilt measurement is required
