Color display GSM8

2.8"for sensorsindustrial

Product Introduction

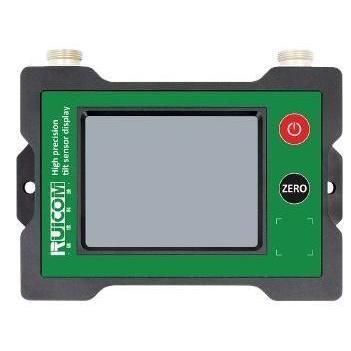

The GSM8 SERIES wired transmission data handheld display, developed by RUICOM, is designed for real-time visualization of sensor outputs in industrial applications. It is compatible with RUICOM inclinometers, accelerometers, electronic compasses, gyroscopes and attitude reference systems, and supports third-party sensor integration. The unit features an industrial 2.8-inch color digital screen, PC membrane buttons, customizable function keys and panel colors, and an all-metal housing for installation in demanding environments. Communication is supported via RS485 for long-distance links; the device is powered by an external DC 9–36 V supply.

Key Features

• Transmission interface: RS485 (supports long-distance transmission, specified up to 500 m)
• Display: 2.8-inch industrial color digital screen
• Resolution options: 0.01° and 0.001°
• Power supply: DC 9–36 V (external)
• Operating temperature: -25°C to +80°C
• Construction: all-metal casing for industrial durability
• Controls: PC membrane buttons; configurable function buttons and panel colors
• Sensor support: compatible with RUICOM sensors and third-party sensor/data-acquisition solutions

Product Dimensions
Outline and mounting drawings are provided to guide installation and panel integration. Refer to the technical drawings for cutouts, mounting hole positions and clearances.

Technical Specifications

• Model: GSM8 SERIES
• Display type: 2.8-inch industrial color digital screen
• Communication: RS485 (long-distance, up to 500 m)
• Resolution: selectable 0.01° / 0.001°
• Power input: DC 9–36 V (external)
• Operating temperature range: -25°C to +80°C
• Housing: all-metal casing
• Input/controls: PC membrane keys; customizable layout and panel colors
• Functions: sensor zero calibration; supports integration with third-party sensors and DAQ systems
• Applications: real-time monitoring with RUICOM sensors in harsh industrial environments
