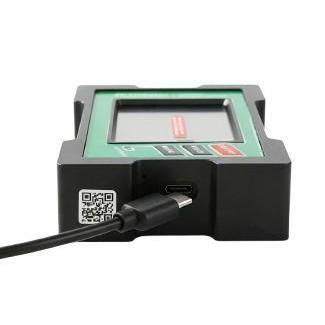

2-axis inclinometer GDS8 series

1-axisdigitalUSB

Product Overview
RUICOM Technology GDS8 series digital inclinometers deliver high-precision angle measurement tailored for industrial measurement, alignment and control tasks. The product integrates micro-mechanical sensing, dual measurement cores and a dynamic Y/X compensation mechanism combined with a proprietary cross-compensation algorithm and temperature compensation model to improve accuracy and long-term stability.

Key Features

• Models: GDS810 (single-axis) and GDS820 (dual-axis).
• Angle measurement ranges available: ±15°, ±30°, ±45° (variant-dependent).
• Resolution: 0.001°; full-range accuracy down to <0.005° for top variants.
• Supports three display/measurement modes: angle (°), degrees·minutes·seconds, and mm/m.
• Fast response with stable, reliable data output and Type-C interface.
• Innovative magnetic adsorption structure for side or bottom mounting; anodized aluminum housing for industrial use.
• Built-in data storage, 64-color LCD, rechargeable 3.7V battery (≈11 h runtime, ≈5 h charge).
• Rated IP54 with proven vibration (10g @11ms) and shock resistance (10grms / 10–100Hz).

Technical specifications

• Measuring axis: GDS810 single-axis; GDS820 dual-axis.
• Angle ranges: ±15°, ±30°, ±45° (model/variant dependent).
• Angle accuracy (full range): GDS810: <0.005° (±15°), <0.01° (±30°), <0.03° (±45°); GDS820: <0.005° (±15°), <0.01° (±30°).
• Angle resolution: 0.001°; repeatability ≤0.003°.
• mm/m ranges (examples): 267 / 577 / 1035 (variant-dependent); mm/m resolution: 0.02; mm/m accuracy examples: 0.1 / 0.2 / 0.5.
• Operating temperature: -10°C to +70°C; humidity: up to 85% RH.
• Power: rechargeable 3.7V battery; charge time ≈5 h; continuous operation ≈11 h.
• Data output: Type-C; included host software: VC application.
• Display: 64-color true-color LCD, viewable area L57.6 × W43.2 mm.
• Dimensions: 109 × 77 × 27 mm; weight ≤350 g; material: anodized aluminum alloy; protection: IP54.

Applications

• Machine alignment and leveling (tooling, fixtures, presses).
• Calibration and inspection in production and quality control.
• Platform and structure inclination monitoring (construction, industrial platforms).
• Precision assembly, solar tracker alignment, and field calibration tasks.

Ordering & accessories

• Available variants: GDS810 (single-axis) and GDS820 (dual-axis) with selectable angle ranges and mm/m options.
• Standard delivery includes device, Type-C cable, VC software access and basic documentation; optional items: magnetic mounting brackets, calibration certificate, spare batteries and customized firmware or OEM labeling—contact RUICOM Technology for options.
