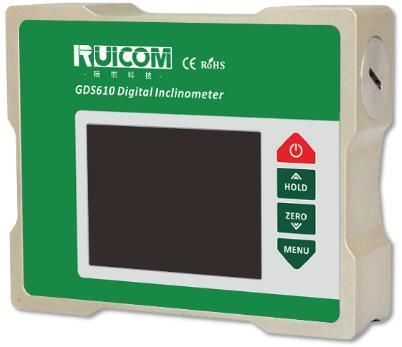

Single-axis inclinometer GDS610

digitalMEMShigh-precision

Product Overview
The GDS610 is a high-precision industrial-grade digital tilt measuring instrument designed for angle monitoring and control in industrial settings. It utilizes advanced MEMS sensing technology combined with a cross-axis compensation algorithm and temperature drift correction model to ensure excellent long-term stability and repeatability of measurement data. The device features a single-axis measurement range of ±90°, high resolution of 0.001°, rapid response, stable output, integrated data storage, and supports switching between three measurement units (degrees, minutes & seconds / decimal angles / mm per meter). Its three-dimensional magnetic mounting design (strong magnetic adsorption on sides and bottom) enables multi-reference surface measurement and enhances on-site installation flexibility. The series offers strong system scalability, ease of operation, and industrial reliability while maintaining competitive cost-performance.

Key Features

• Optimal accuracy: <0.02° (RMS, full range for single-axis)
• Repeatability: 0.004°
• Angular resolution: 0.001°
• Data storage function (integrated data storage module)
• Three-plane reference strong magnetic mounting (sides and bottom magnetic adsorption) for multi-reference surface measurement
• Automatic angle interpolation compensation function
• Supports switching measurement modes: degrees, minutes/seconds, decimal angles, and mm/m
• 64-color true-color luminous LCD display for clear readout

Caractéristiques / spécifications techniques

• Model: GDS610
• Angle Measurement Range: ±90° (single-axis variant) ; ±30° (dual-axis variant)
• Measuring Axis: Single-axis (GDS610) ; Dual-axis (variant)
• Maximum Measurement Accuracy (RMS): <0.02° (full range, single-axis) ; <0.005° (full range, dual-axis)
• Angle Measurement Resolution: 0.001°
• Repeatability: 0.004°
• Measurement Modes: Degrees, minutes & seconds, decimal angles, and mm/m modes (settable)
• LCD Display: 64-color true-color luminous display screen
• LCD Viewable Area Size: L60.5mm × W45mm
• Operating Temperature: -10℃ to +70℃
• Operating Humidity: 85% RH
• Battery Specifications: One 2A AA battery or AA NiMH rechargeable battery
• Battery Continuous Operating Time: 6 hours (with 2000mAh battery)
• Vibration Resistance: 10g @ 11ms, triaxial (half-sine wave)
• Shock Resistance: 10 grms, 10–100Hz
• Weight: 712 g
• Waterproof Rating: IP54
• Material: Abrasion-resistant aluminum alloy
• Dimensions: L115 × W95 × H32 mm
• Precautions: For highest measurement accuracy, set the local city latitude information; settings are automatically saved after completion.
