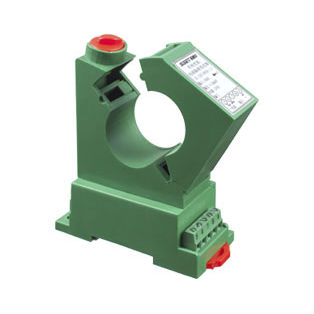

This product is a current split core measurement 1-phase DC current digital isolation transducer. It can measure the current of the DC circuit. Using high-precision 24-bit dedicated AD chip, the ratio dynamic range can be up to 1000: 1. Using principle of Hall measurement, which is with high accuracy, good stability and high communication speed, the completely isolated processing technology with anti-interference ability. Measurement of electrical parameters through the RS-485 digital interface output to achieve long-distance transmission, the product MODBUS protocol is complete compatible with a variety of configuration software or PLC equipment MODBUS (RTU) protocol. It can be applied to power, room monitoring, industrial measurement and other fields.
Available with wide power supply: DC: 10-30V or 10-55V.
On-site installation is easy, opening and closing installation, convenient and quick.
Can be bipolar measurement, with positive and negative active power and cumulative energy measurement function.
The intelligent transducer with the smallest size and wide current measurement range in the peer.
Energy has positive and negative cumulative function, with power-down storage.
With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication.
High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.
