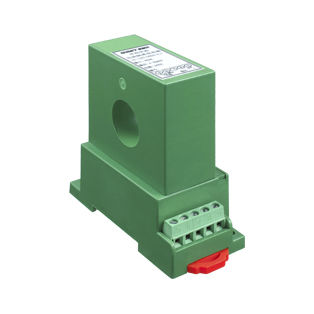

Magneto-resistive current transducer CE- IB04-**ES3-1.0 series
DIN railDCthrough-hole

magneto-resistive current transducer
magneto-resistive current transducer
Add to favorites
Compare this product


Characteristics

Technology
magneto-resistive
Mounting
DIN rail
Electrical characteristics
DC
Other characteristics
through-hole
Primary current

Min.: 0 A

Max.: 300 A

Description

This device is a bidirectional DC current measurement isolation transducer. It is used Hall measurement principle and perforated input mode, with a very high isolation voltage function. The input bidirectional DC current signal can be converted to linear standard bidirectional DC signal output. It is widely used in new energy power generation monitoring, industrial control, DC power supply and other automated monitoring and control system. * Accuracy: class 1.0; * Auxiliary Power supply: DC 12V, 15V, 24V or DC 11.5V-26V, wide power supply; * Input range: DC ±30A~±300A; * Output: 0~±5V, 0~10V, 4~20mA, 0~20mA; * Load capacity: voltage output load ≥ 2KΩ, current output load ≤ 250Ω; * Temperature drift: ≤500PPm/°C; * Isolation voltage: 2500 V DC; * Response time: ≤200 mS; * Rated power consumption: ≤800mW; * Output ripple: ≤15mV; * Frequency range: none; * Surge impact immunity: power supply port four-level 4000V; output port three-level 2000V; * Input overload capacity: 20 times of the measured current nominal value of the measured current (maximum 500A, lasts for 1 second); * Operating temperature: -10~60°C; * Storage temperature: -40~70°C.
