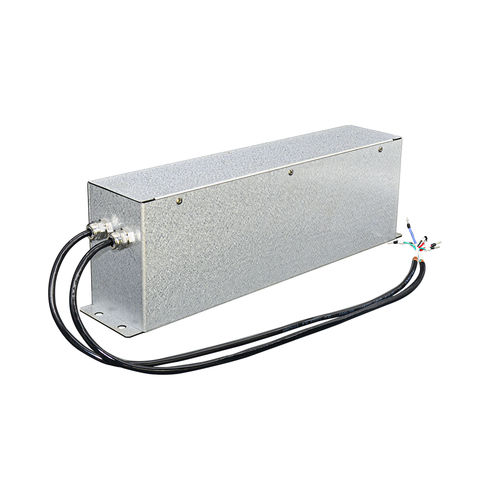

Low-pass electronic filter SKS-SF-0010-4C2/DC-L

passivethree-phasesine wave

This is a Sine Wave and EMC Output Filter for Motor Drives with a DC Link Access. It will eliminate the disturbance between phase and ground. Normal sine wave filter only works between phases. With improved sine wave filter you can use unshielded motor cables with good EMC performance. You can use old motor cables and still keep in EMC category C2. The best choice for energy saving for existing motors. Technical Data: Smoothing of PWM drive output voltage Efficient motor protection Reduction of common-mode interferences on motor cables Improvement of EMC environment Elimination of motor bearing damages Possibility to use very long unshielded motor cables Improvement of system reliability Motor frequency : 0 to 100 Hz Switching frequency : 6 to 16 kHz Rated current : 4 to 16 A Motor cable length : ≤1000 m Motor power : 1.5 to 7.5 kW Voltage : 220 to 690 V Sine wave filter Technical Standards： Capacitors:CEI EN 60831-1/2,IEC 831-1/2 Equipment:CEI EN60439-1,IEC 439-1,IEC /EN 60939
