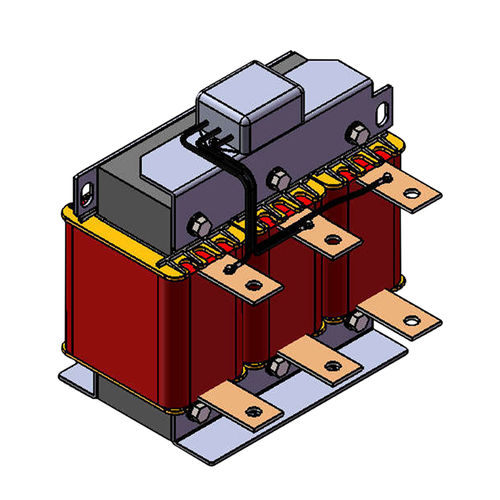

Low-pass electronic filter SKS-DVT-0148-4A/10

passivethree-phasedu/dt

Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreover, the units are intended for maximum switching frequency of 200 kHz. The filters create less heat with smaller switching frequencies. The motor is not intended for utilizing with a variable speed drive to retrofit applications. Du/Dt filter is economical alternative for Sine wave filter. Dv/dt filters Technical Data: Nominal voltage range : 3*380±10% DV/DT≤1000μS Protection:IP00 Overload capability:150% 60S,120% 60min Insulation Class:H Dielectric strength:AC4000V/5mA/60s Insulation resistance:core-winding,≧100MΩ（DC1000V）; Cooling:AN Dv/dt filters Applications: Ventilators,conveyors,Pumps HVAC installations, Compressors Elevators ,Cranes , wind power,UPS,EPS Motor drive with long cable Motor drive with multiple motors in parallel Medium voltage applications(deployed in front of the step-up transformer)
