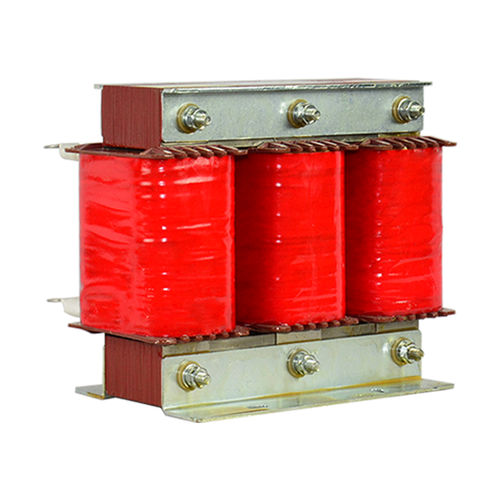

Line choke SKS-ACL-0080-AL/4
wire-woundferriteAC

line choke
line choke
line choke
Add to favorites
Compare this product


Characteristics

Technology
wire-wound, ferrite
Electrical characteristics
AC, three-phase
Configuration
line
Applications
for motors, for inverters
Other characteristics
IP 00, AC reactor
Primary current

80 A

Voltage

400 V

Description

Line Reactor: SKS-ACL series Line Reactor are placed in series with electrical equipment to introduce a specific controlled impedance to the AC circuit. This series are applied at AC drive input side to suppress inrush voltage, reducing inrush and peak current, improving real power factor, restraining grid harmonics and improving the output current waveform. AC Line Reactor also known as input Reactor, AC Choke. Material Features of Line Reactor: Flexible Meterial Choice:Selection of silicon steel,ferrite magnetic material of amorphous core according to the frequency of application; Excellent Property:Due to foll winding structure,small DC resistance, strong resistance to electromagnetic force, good overload ability in short time Reliable Performance:F-class insulation materials are used, which ensure products maintaan reliable performance in harsh working condition. Low Noise: Designed with low magnetic flux density,the reactors of high linearit.With powerful overload sheets, the reactor noise is low Characteristic of this series : Rated operating power: 380V/690V/1140V Operating frequency: 50/60Hz Current range: 5-1600A Operating ambient temperature: -25℃-50℃ Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory) Insulation Resistance: Core-Winding,DC 1000V,Resistance >100M ohm Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally Protection class: IP00 Insulation class: F/H Standard: GB 19212.1-2008GB/T1094.6-2011 Application of Line Reactor: For inverter and motor
