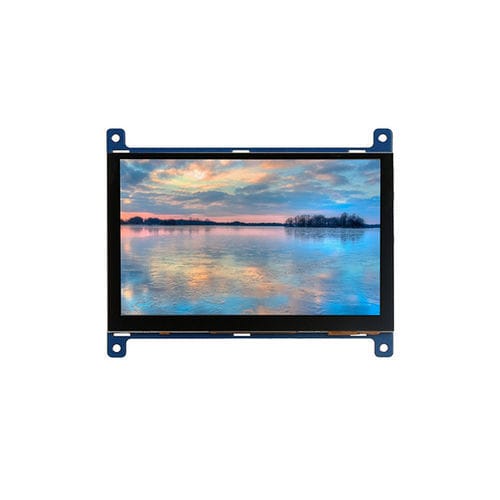

TFT display module T050GBP002

TNcapacitive touch screencolor

Product Overview
5 Inch Capacitive Touch Screen (Model T050GBP002) is a slim, low-power HDMI+USB TFT display with a G+G capacitive touch panel and toughened cover glass, designed for industrial HMI and embedded applications.

Features
The HDMI LCD Touch Display (T050GBP002) integrates a TFT TN panel, a PCAP capacitive touch panel and an HDMI/USB PCB. It supports low power consumption (5V ~480 mA typical) and is compatible with Raspbian, Windows, Android, Linux and Arch Linux.

Construction and Touch Technology
The module comprises a cover glass, sensor glass, driver IC and FPC. The capacitive touch uses a G+G structure driven by a GOODIX GT911 controller over an I2C interface, with support for 5 simultaneous touch points.

Advantages

• Wide compatibility: TN display balances cost and basic visual performance for industrial interfaces.
• Responsive touch: Capacitive PCAP provides higher sensitivity and smoother gesture control than resistive alternatives.
• Clear visuals: 800×480 resolution on 5" delivers legible text, icons and simple graphics for HMIs.
• Flexible integration: HDMI and USB interfaces facilitate connection to SBCs, media players and development boards.
• Compact form factor: 5-inch size fits portable devices, instrumentation panels and compact control units.

Applications

• Industrial panels and control consoles for automated processes.
• Human-machine interfaces (HMI) in industrial equipment and machine control.

Technical Parameters
Model: T050GBP002
Size: 5 Inch
LCD Type: TFT
Display Type: TN
LCD Interface: RGB
Pin No.: 40Pin
Resolution: 800×480
Brightness: 350cd/m2
Viewing Direction: 12 o’clock
Viewing Angle Range: 70/70/60/70Deg.
LCD Active Area (mm): 108.00×64.80
LCD Outline Dimension (mm): 121.00×97.05×7.03
Anti-Glare/Anti-Reflection/Anti-Fingerprints: Customizable
Touch Type: Capacitive
Touch Points: 5 Points
Touch Structure: G+G
Touch Interface: IIC (I2C)
Touch Hardness: 6H
Module Structure: PCAP Touch & LCD Display & PCB
PCB Interface: HDMI USB
Cables: With/Without
Operating Temperature: -10ºC~+50ºC
Storage Temperature: -20ºC~+60ºC
Bonding Method: Optical Bonding, Air Bonding
Support System: Windows, Android, Linux etc
Application Fields: Industrial Control, Home Automation, Medical Device, Self-service Terminal etc

Specifications / Technical Specifications

• Model: T050GBP002
• Display size: 5 inch, TFT, TN
• Resolution: 800 × 480
• Brightness: 350 cd/m²
• Active area: 108.00 × 64.80 mm
• Outline dimension: 121.00 × 97.05 × 7.03 mm
• Touch: PCAP capacitive, G+G structure, GOODIX GT911 controller (I2C), 5 touch points
• Touch hardness: 6H
• PCB/interface: HDMI + USB
• Pin count: 40Pin (RGB interface)
• Power: 5V, ~480 mA (typical)
• Cables: Optional (with or without)
• Bonding: Optical bonding or air bonding available
• Operating temperature: -10°C to +50°C; Storage: -20°C to +60°C
• Typical application fields: industrial control, HMI, home automation, medical devices, self-service terminals
