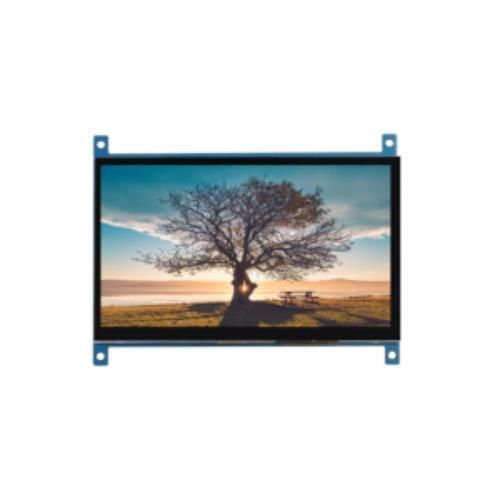

TFT LCD display module T070GBP002

IPScapacitive touch screencolor

Overview
The 7-inch 1024×600 IPS HDMI USB Touch Display (model T070GBP002) is a compact TFT LCD module with an integrated PCAP capacitive touch panel and an HDMI+USB interface PCB. The module operates from 5V and supports common platforms such as Raspbian, Windows, Android, Linux and Arch Linux.

Features

• Resolution: 1024 × 600 (suitable for 7-inch applications)
• IPS panel for wide viewing angles and accurate color reproduction
• Brightness: 250 cd/m² for use in well-lit environments
• Optical bonding available to improve clarity and reduce internal reflections
• Multi-touch support (up to 5 touch points reported)
• Touch controller: GOODIX GT911
• Touch structure: G+G (cover glass + sensor glass)
• Touch interface: I2C / IIC
• PCB interfaces: HDMI for video; USB for touch and power

Benefits

• Compact form factor — suitable for space-constrained industrial and embedded projects
• Simple connectivity — HDMI connects to Raspberry Pi, mini PCs, consoles and laptops; USB provides touch data and power
• Low power potential depending on system configuration — suitable for battery-powered designs
• Sharp image quality on a small screen for control panels and HMI
• Wide viewing angles and consistent color typical of IPS technology
• High luminance improves readability in bright environments

Technical parameters (table)
Model: T070GBP002
Size: 7 inches
LCD Type: TFT
Display Type: IPS
LCD Interface: RGB
Pin No.: 50Pin
Resolution: 1024×600
Brightness: 250 cd/m2
Viewing Direction: all directions
Viewing Angle Range: 85/85/85/85 Deg.
Contrast Ratio: —
LCD Active Area (mm): 154.21×85.92
LCD Outline Dimension (mm): 165.00×125.00×3.5
Anti-Glare / Anti-Reflection / Anti-Fingerprints: Available
Touch Type: Capacitive
Touch Points: 5-10 Points
Touch IC Chip: GT911
Touch Structure: G+G
Touch Interface: IIC / I2C
Touch Hardness: 6H
Module Structure: PCAP Touch & LCD Display & PCB
PCB Interface: HDMI (for display and image), USB (for touch and power)
Cables: With / Without
Operating Temperature: -10ºC ~ +50ºC
Storage Temperature: -20ºC ~ +60ºC
Bonding Method: Optical Bonding, Air Bonding
Support System: Windows, Android, Linux etc.
Application Fields: Industrial control, home automation, medical device, self-service terminal etc.

Technical specifications

• Model: T070GBP002
• Display size: 7 inches
• Resolution: 1024 × 600
• Panel type: TFT IPS
• Brightness: 250 cd/m2
• Touch type: PCAP capacitive (G+G)
• Touch controller: GOODIX GT911
• Touch points: 5-10
• Interfaces: HDMI (video), USB (touch & power), RGB LCD interface
• Operating temperature: -10ºC to +50ºC
• Storage temperature: -20ºC to +60ºC
• Outline dimension (mm): 165.00 × 125.00 × 3.5
• Active area (mm): 154.21 × 85.92
• Bonding: Optical or Air bonding available
• Applications: Industrial control, home automation, medical devices, self-service terminals
