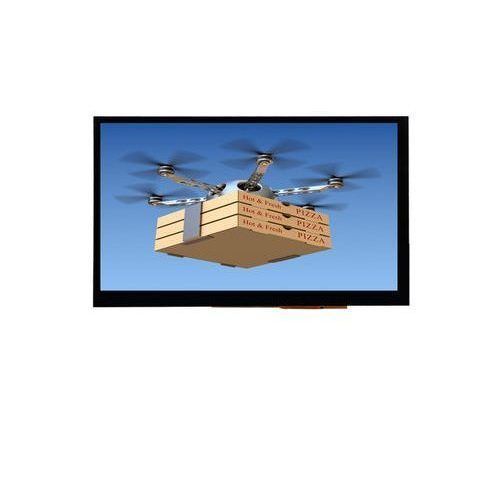

TFT LCD display module T070GBP001

capacitive touch screenmultitouch screencolor

Product Overview
7-inch capacitive touchscreen LCD module T070GBP001 combining a TFT LCD panel, G+G PCAP capacitive touch panel and an HDMI+USB controller board. 800×480 resolution, 450 cd/m² brightness and USB touch interface make it suitable for embedded systems and industrial HMI driven by SBCs (e.g., Raspberry Pi) or other HDMI sources.

Key Features

• Size: 7 inch, resolution 800×480 (SD)
• Panel: TFT LCD, TN type
• Brightness: 450 cd/m²
• Touch: G+G capacitive multi-touch, up to 5 touch points
• Touch controller: Goodix GT911Sh (I2C referenced)
• Interfaces: LCD RGB; touch via USB; PCB interfaces HDMI + USB
• Power: supports 5V supply

Advantages

• Compact 7-inch form factor for space-constrained industrial equipment
• Sensitive multi-touch capacitive input for modern HMI designs
• Broad compatibility with HDMI output devices and single-board computers
• Lower power requirements compared with higher-resolution displays

Production & Stock
Production State: In Production
Stock Quantity: 10 Pieces

Additional Details
Structure: G+G (cover glass + sensor glass). Touch hardness: 6H. Module composition: PCAP touch + LCD display + PCB. Cables: optional (with/without). Operating temperature: -10°C to +50°C. Storage temperature: -20°C to +60°C. Bonding method: Optical bonding or Air bonding. Supported systems: Windows, Android, Linux, Raspbian, Arch Linux, etc.

Specifications / Technical Specifications

• Model: T070GBP001
• Size: 7 inches
• LCD Type: TFT
• Display Type: TN
• LCD Interface: RGB
• Pin No.: 50Pin
• Resolution: 800×480
• Brightness: 450 cd/m²
• Viewing Direction: 6 o'clock
• Viewing Angle Range: 70/70/60/70°
• Contrast Ratio: 700:1
• LCD Active Area (mm): 154.21 × 85.92
• Outline Dimension (mm): 165.00 × 100.00 × 3.50
• Anti-Glare / Anti-Reflection / Anti-Fingerprint: Available
• Touch Type: Capacitive
• Touch Points: 5 points
• Touch IC: Goodix GT911Sh (referenced)
• Touch Structure: G+G
• Touch Interface: USB
• Touch Hardness: 6H
• Module Structure: PCAP Touch & LCD Display & PCB
• PCB Interface: HDMI + USB
• Cables: With/Without options
• Operating Temperature: -10°C ~ +50°C
• Storage Temperature: -20°C ~ +60°C
• Bonding Method: Optical Bonding, Air Bonding
• Supported Systems: Windows, Android, Linux, Raspbian, Arch Linux, etc.
• Application Fields: Industrial control, home automation, medical devices, self-service terminals, embedded systems
