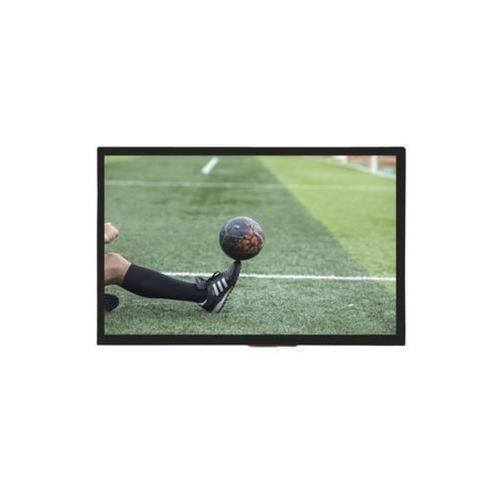

TFT LCD display module T101GBP003

IPSPCAP touchscreenmultitouch screen

Product Overview
Introducing the 10.1-inch Touch Screen Display (model T101GBP003), an industrial-grade HDMI + USB interactive display kit combining a TFT LCD (IPS) panel with a PCAP capacitive touch panel (G+G). The touch controller is GOODIX GT9271 with 10-point multi-touch via an IIC (I2C) interface. The module supports wide viewing angles, outdoor readability and low power operation (5V).

Key Display Features

• Resolution: 1280 x 800 for clear visuals
• IPS TFT panel for wide viewing angles and color consistency
• Sunlight-readable options for outdoor/bright environments
• Optical bonding or tape bonding available to improve clarity and durability
• Low power consumption: 5V supply

Touch Panel Features

• PCAP capacitive touch, G+G glass structure
• 10-point multi-touch support
• Durable glass with 6H hardness (scratch resistance)
• Touch IC: GOODIX GT9271
• Touch interface: IIC (I2C)

Versatility and Compatibility

• Compatible with Windows, Android, Linux (including Raspbian, Arch Linux) and Raspberry Pi
• Interfaces: HDMI for display; USB for touch and power (standard configuration)

Applications

• Industrial control: HMI panels, machine interfaces, monitoring systems
• Home automation: control panels and security systems
• Medical devices: patient terminals and diagnostic displays
• Self-service terminals: kiosks, ATMs, ticketing and information displays
• Education: interactive whiteboards and student devices
• Retail: POS systems and interactive displays
• Automotive: in-vehicle infotainment and navigation displays
• Other: digital signage, portable consoles, media players, robotics

Production & Stock
Production State: In Production
Stock Quantity: 10 Pieces

Technical Parameters
Model: T101GBP003
Size: 10.1 inches
LCD Type: TFT
Display Type: IPS
LCD Interface: LVDS
Pin No.: 40Pin
Resolution: 1280 x 800
Brightness: 200 cd/m² (table) — 350 cd/m² (overview)
Viewing Direction: All o'clock
Viewing Angle Range: 85/85/85/85°
Active Area (mm): 216.96 x 135.60
Module Outline Dimension (mm): 229.46 x 149.10 x 4.90
Anti-Glare / Anti-Reflection / Anti-Fingerprint: Available
Touch Type: Capacitive (PCAP)
Touch Points: 10 Points
Touch IC Chip: GOODIX GT9271
Touch Structure: G+G
Touch Interface: IIC (I2C)
Touch Hardness: 6H
Module Structure: PCAP Touch + LCD Display + PCB (CTP Touch + LCD Display + HDMI PCB)
PCB Interface: HDMI, USB
Cables: With/Without (optional)
Operating Temperature: -10°C to +50°C
Storage Temperature: -20°C to +60°C
Bonding Method: Optical Bonding, Air Bonding
Support System: Windows, Android, Linux etc.
Application Fields: Industrial control, home automation, medical device, self-service terminal etc.

Additional Notes
- Touch controller: GOODIX GT9271; touch structure G+G; touch interface IIC (I2C).
- Module outline and active area dimensions provided for mechanical integration.

Technical Specifications

• Model: T101GBP003
• Display size: 10.1 inches
• Resolution: 1280 x 800 (HD)
• Panel type: TFT LCD with IPS
• LCD interface: LVDS
• Module dimensions: 229.46 x 149.10 x 4.90 mm
• Active area: 216.96 x 135.60 mm
• Brightness: 200 cd/m² (table) / 350 cd/m² (overview)
• Viewing angle: 85/85/85/85°
• Touch: PCAP capacitive, G+G structure, 10-point touch
• Touch IC: GOODIX GT9271
• Touch interface: IIC (I2C)
• Touch hardness: 6H
• Ports: HDMI (display), USB (touch & power)
• Power supply: 5V
• Operating temp: -10°C to +50°C; Storage temp: -20°C to +60°C
• Bonding: Optical Bonding / Air Bonding
• Anti-glare / anti-reflection / anti-fingerprint: Available
• Typical applications: Industrial control, home automation, medical, self-service terminals, retail POS, education, automotive, digital signage, robotics
