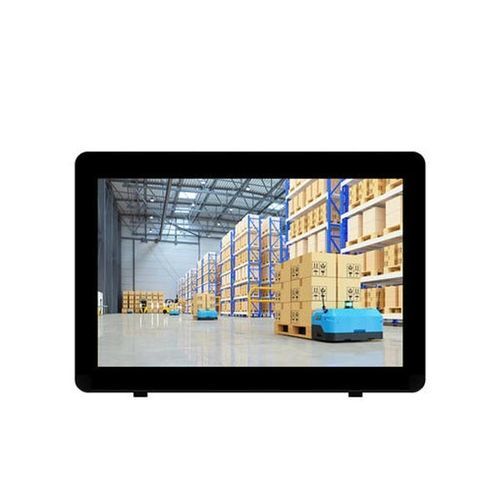

TFT display module T101GBP005

IPSPCAP touchscreenmultitouch screen

Product Overview
10.1-inch IPS capacitive touchscreen with 1280×800 resolution, HDMI and USB interfaces. Supplied as a kit including LCD module, touch-enabled PCB and acrylic protection case. Designed for Raspberry Pi and embedded systems, offering wide viewing angles and multi-touch input.

Production & Stock

• Production State: In Production
• Stock Quantity: 10 Pieces

Core Display Features

• Display: 10.1 inch IPS
• Resolution: 1280×800
• Viewing Angles: 85/85/85/85 Deg
• Brightness: 300 cd/m2
• Optional optical bonding to reduce reflections and improve contrast
• Anti-glare, anti-reflection and anti-fingerprint treatments available

Touchscreen Features

• Touch Type: Capacitive (PCAP)
• 10-point multi-touch support
• Touch IC: GT9271
• Touch Structure: G+G
• Touch Interface: IIC (I2C)
• Touch Hardness: 6H

Connectivity and Integration

• Interfaces: HDMI + USB for display and touch
• LVDS interface supported for standard display controllers
• Includes HDMI and USB controller PCB
• Acrylic protection case included in kit
• Raspberry Pi compatible

Performance and Compatibility

• Operating temperature: -10ºC ~ +50ºC
• Storage temperature: -20ºC ~ +60ºC
• Supported systems: Windows, Android, Linux
• Applications: industrial control, home automation, medical devices, self-service terminals, embedded systems

Technical Specifications

• Model: T101GBP005
• Size: 10.1 inches
• LCD Type: TFT
• Display Type: IPS
• LCD Interface: LVDS
• Pin No.: 40Pin
• Resolution: 1280×800
• Brightness: 300 cd/m2
• Viewing Direction: All o'clock
• Viewing Angle Range: 85/85/85/85 Deg
• Active Area (mm): 216.96 × 135.60
• Module Outline Dimension (mm): 248.67 × 175.16 × 14.30
• Anti-Glare / Anti-Reflection / Anti-Fingerprints: Available
• Touch Type: Capacitive
• Touch Points: 10 Points
• Touch IC Chip: GT9271
• Touch Structure: G+G
• Touch Interface: IIC (I2C)
• Touch Hardness: 6H
• Module Structure: PCAP Touch & LCD Display & PCB & Acrylic Case
• PCB Interface: HDMI USB
• Cables: With / Without (configurable)
• Operating Temperature: -10ºC ~ +50ºC
• Storage Temperature: -20ºC ~ +60ºC
• Bonding Method: Optical Bonding, Air Bonding
• Support System: Windows, Android, Linux
• Application Fields: Industrial control, Home Automation, Medical Device, Self-service Terminal
