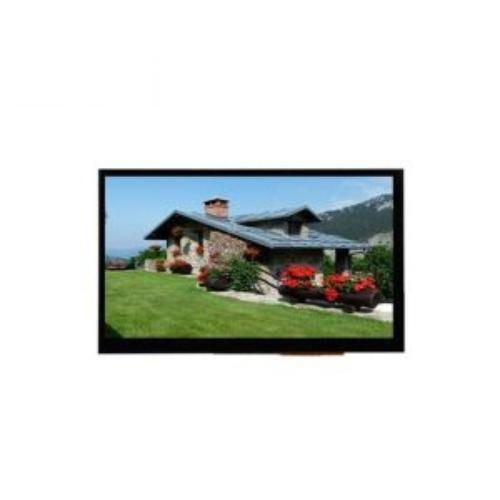

TFT LCD display module WTY070144A11-K01

IPSprojected capacitive touchscreencolor

Product Overview
7-inch capacitive touch panel module WTY070144A11-K01 with 1024x600 IPS display, HDMI video input and USB touch interface. The module integrates a TFT LCD, PCAP capacitive touch (G+G) and an HDMI+USB PCB. Supports 5V power and is compatible with common embedded and desktop OS (Raspbian, Windows, Android, Linux, Arch Linux). Suitable for industrial HMIs, kiosks, medical devices and embedded systems.

Features

• 7-inch diagonal, native 1024 x 600 resolution (SVGA wide) with IPS for wide viewing angles.
• TFT LCD with IPS panel to preserve color and contrast at off-axis views.
• Projected capacitive touch (PCAP) with G+G structure and 5-point multi-touch.
• Optical bonding or air bonding options to reduce internal reflections and improve sunlight readability.
• HDMI for video; USB for touch communication (USB can provide touch power in some setups).
• Optional anti-glare / anti-reflection / anti-fingerprint surface treatments.

Advantages

• Compact 7-inch form factor for space-constrained applications and embedded installations.
• IPS panel ensures consistent image quality across wide viewing angles for operator monitoring.
• Responsive capacitive touch suitable for fingertip operation and multi-touch gestures.
• Straightforward connectivity via standard HDMI and USB interfaces for rapid integration.
• Bonding and surface options enhance durability and outdoor/readability performance.

Technical Parameters
Model: WTY070144A11-K01
Size: 7 inches
LCD Type: TFT
Display Type: IPS
LCD Interface: RGB
Pin No.: 50Pin
Resolution: 1024x600
Brightness: 220 cd/m2
Viewing Direction: All o'clock
Viewing Angle Range: 85/85/85/85 Deg.
Active Area (mm): 85.92 x 154.21
Module Outline Dimension (mm): 164.90 x 100.00 x 7.725
Anti-Glare / Anti-Reflection / Anti-Fingerprints: Available
Touch Type: Capacitive (PCAP)
Touch Points: 5 points
Touch Structure: G+G
Touch Interface: USB
Touch Hardness: 6H
Module Structure: PCAP Touch & LCD Display & PCB
PCB Interface: HDMI USB
Cables: With / Without
Operating Temperature: -10ºC ~ +50ºC
Storage Temperature: -20ºC ~ +60ºC
Bonding Method: Optical Bonding, Air Bonding
Support System: Windows, Android, Linux etc.
Application Fields: Industrial control, home automation, medical devices, self-service terminals, embedded systems

Specifications

• Model: WTY070144A11-K01
• Diagonal Size: 7 inches
• Native Resolution: 1024 x 600 (IPS)
• Brightness: 220 cd/m2
• Active Area: 85.92 x 154.21 mm
• Module Dimensions: 164.90 x 100.00 x 7.725 mm
• Touch: PCAP capacitive, G+G structure, 5-point multi-touch, touch hardness 6H
• Interfaces: LCD RGB, PCB HDMI + USB (USB for touch)
• Pin Count: 50Pin
• Bonding Options: Optical bonding or air bonding
• Operating Temp: -10ºC to +50ºC; Storage Temp: -20ºC to +60ºC
• Surface: Anti-glare / anti-reflection / anti-fingerprint available
• Typical Applications: Industrial control, home automation, medical devices, self-service terminals, embedded systems
