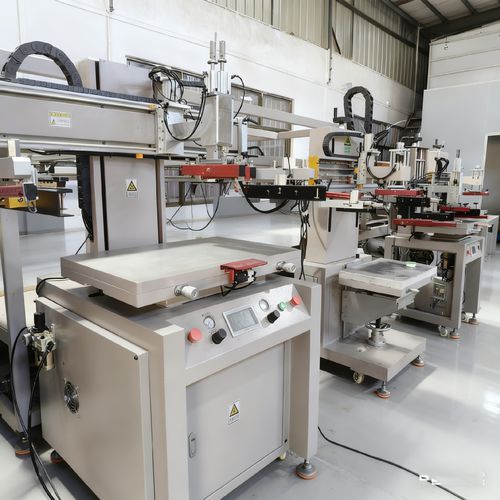

Screen printing machine

for plasticsfor paperfor solar cells

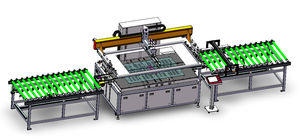

High-Precision Flatbed Screen Printing Machine for Industrial & Electronic


Applications
Overview
This high-precision flatbed screen printing machine is engineered for demanding industrial applications requiring exceptional accuracy and consistency. It is ideally suited for printing on a wide range of flat substrates, including tempered glass, capacitive touchscreens, conductive ceramics, plastic sheets, metals, and solar panels. Designed with a fully servo-driven system and premium components, it delivers the stability and precision essential for electronic devices, instruments, and thick-film circuit production (e.g., electric heating ceramics, resistors).
Core Features & Technical Advantages

• Ultra-Precision Worktable: The cast aluminum alloy platen (550*800 mm) is machined to a flatness ≤0.05mm. An optional finely ground worktable with flatness below 0.01mm is available for ultra-precise applications like thick-film circuits. It features a powerful, low-noise suction motor for secure substrate holding.
• Advanced Servo Control System: Utilizes a Japanese Panasonic PLC and touchscreen HMI for intuitive, CNC-style parameter setting. All major movements—lateral transmission, screen plate lifting, squeegee/floodbar switching—are driven by servo motors and precision Taiwanese linear guides, ensuring smooth, accurate, and adjustable operation.
• Comprehensive Adjustability & Calibration: Equipped with a handwheel fine-tuning structure, a 4-corner adjustable screen frame clamp for perfect leveling, and easy adjustments for printing angle, pressure, and screen distance. This guarantees uniform ink deposition and repeatable print quality.
• Robust Safety & Intelligent Protection: Features triple-side safety guards, an emergency stop button, and a pressure plate. The system includes intelligent crash prevention between the print head and screen frame, with automatic position memory storage.
• Customizable Printing Area: Available in multiple sizes to fit your specific production needs (e.g., 400*600mm, 600*800mm, 800*1200mm).

Technical Specifications

• Control System: Panasonic PLC Touchscreen HMI
• Drive System: Servo Motors Synchronous Belts Precision Linear Guides
• Standard Platen Size: 550 x 800 mm
• Standard Platen Flatness: ≤ 0.05 mm
• Optional High-Precision Platen Flatness: < 0.01 mm
• Key Features: Automatic suction worktable, fully adjustable printing parameters, intelligent crash prevention.
• Max. Printing Area Options: 400x600mm, 600x800mm, 500x700mm, 450x900mm, 800x1200mm (Customizable)

Applications

• Electronics: Capacitive touchscreens, instrument panels, membrane switches.
• Advanced Ceramics: Conductive circuits, heating elements, resistors.
• Renewable Energy: Solar panel metallization.
• Industrial Components: Precision labels, graphic overlays on glass, metal, or plastic.
