Screen printing machine for plasticsfor paperfor metal
Add to favorites
Compare this product
Characteristics
- Printing technology
- screen
- Applications
- for paper, for packaging, for plastics, for metal, for ceramics, for cardboard, for cards
- Number of colors
- color, monochrome, multi-color
- Other characteristics
- with touchscreen controls, flat bed
- Printing speed
Max.: 1,500 p/h
Min.: 400 p/h
Description

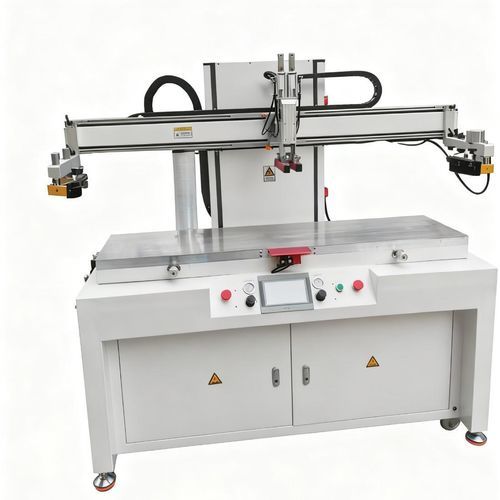

Precise dual servo flatbed screen printing machine paper sticker PVC PET PCB Glass sheet flat printer machine
Customization & Applications
Customization: Special models can be customized according to client requirements.
Primary Applications:
Ideal for printing on high-precision tempered glass, capacitive touch screens, and conductive ceramic products.
Suitable for flat printing on various materials, such as:
Plastics ,Glass,Ceramics, Metal,Solar Panels
Industry Use:
Widely used for high-precision, fine-detail flat screen printing in industries including electronics, electrical appliances, instrumentation, and related electronic product manufacturing.
Machine Features
Squeegee & Flooding System:
Main structure is constructed from imported aluminum, making it lightweight and durable.
Squeegee and floodbar switching is controlled pneumatically.
Guided by original Taiwanese imported cross roller guides.
Pressure adjustment for the squeegee and floodbar is simple and fast.
Meanwhile, it features a scale display for adjusting squeegee and floodbar height, enabling the quantification of all settings.
Worktable Structure:
The worktable base is made from GB-standard steel, known for its good molecular stability and resistance to deformation.
The aluminum plate bonded to the table surface undergoes anodic hardening treatment to enhance its hardness and prevent scratches.
Worktable Vacuum: Uses a silent blower as the vacuum source, reducing equipment noise and providing constant suction force.
Safety Features: The machine is equipped with multiple safety protections: safety guards, photoelectric safety sensors, and emergency stop buttons, ensuring safe, stable, and reliable operation.
Tech data
| 1. Output | 400-800 pcs/h |
| 2. Machine Weight | 650 kg |
| 3. Worktable Height from Floor | 950 mm |
| 4. Worktable Surface Size | 700mm × 1000mm |
| 5. Vacuum Area | 600mm × 800mm |
| 6. Max. Printing Area | 600mm × 900mm |
| 7. Vacuum Hole Diameter | Ø1 mm |
| 8. Screen Frame Thickness Range | 20mm - 40mm |
| 9. Screen Frame Adjustment Method | 4 corners adjustable, ±5mm |
