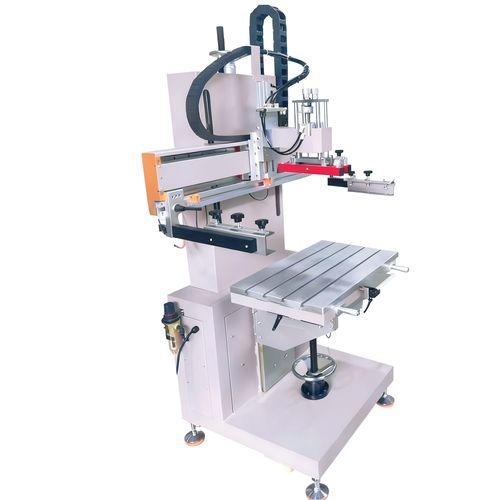

Vertical Table-Lifting Screen Printing Machine Flat Screen Printer Plane Screen Press For Plastic Panels Air Conditioner Housings

Model: S4070FB

Applicable Industries: Ideal for screen printing on various flat sheet/panel substrates, including but not limited to:

Air conditioner housings,Plastic casings,Metal housing components,Silicone products,Control panels,appearance housings for electrical devices.

Product Features:

1.Microcomputer Control (touchscreen HMI optional) for all functional operations. Simple and convenient operation with built-in 5-digit automatic counter.

2.All pneumatic components use renowned brands to ensure machine quality.

3.Left/right squeegee traverse driven by Holch servo motor linear guide rail, ensuring smooth and stable movement.

4.Screen frame lifting driven by cylinder cylindrical guide rail.

5.Worktable allows fine adjustment: front/back, left/right, and angular leveling. Screen frame has front/back fine adjustment. Quick and easy calibration.

6.Worktable options: T-slot table / Vacuum suction table (optional).

7. Self-leveling squeegee ensures uniform ink pressure. Squeegee pressure freely adjustable. Printing stroke and speed adjustable to meet diverse printing requirements.

Mechanical error ≤0.1mm.

8. External keypad panel enables safe and convenient manual adjustment, preventing operational errors during HMI interaction.

9. Multi-layer safety protection ensures personnel safety. Integrated with HMI safety alerts for rapid troubleshooting of faults and hazards.

Basic Specification

| Printing Table Size | 400 × 700 mm |

| Table Fine Adjustment Range | ±8 mm |

| Max. Printing Size | 300 × 700 mm |

| Table Height | 535 ± 30 mm |

| Max. Screen Frame Size | 400 × 900 mm |

| Screen Frame Lift Height | 125 mm |

| Max. Printing Speed | 900 pcs/h |

| Air Supply Pressure | 5 ~ 6 kg/cm² |

| Max. Screen Frame Thickness | 20 ~ 35 mm |

| Power Supply | 1 phase 220V / 50Hz |

| Max. Substrate Thickness | 0 ~ 600 mm |

| Air Consumption | 2.6 L/circle |

| Print Head Speed | 0 ~ 600 mm/s |

| Machine Dimensions | 860 × 600 × 1080 mm |

| Print Head Angle | ±9 |

| Machine Weight | 225 kg |
