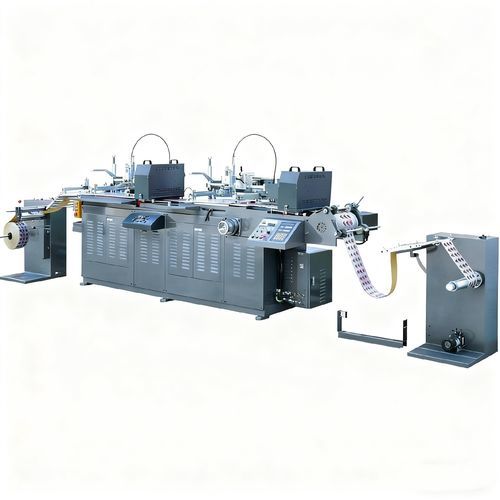

Fully-automatic screen printer

2-colorfor electronicsfor labels

High-speed, fully automatic roll-to-roll UV screen printing machine integrating printing and UV curing. Designed for accurate registration, automatic feeding and stable multi-pass overprinting on various rolled substrates.

Applicable materials:

• Industrial tapes
• Electromagnetic shielding materials
• Protective films
• PVC, PET
• Transfer paper
• Tetoron (polyester)
• Self-adhesive label paper and other films and rolled materials

Applicable industries:

• Daily chemicals
• Household goods
• Stationery
• Electronics and office supplies
• Anti-counterfeiting and electronic surveillance barcode printing
• Pharmaceutical product labels
• Toys and character stickers

Main technical description / features:
This fully automatic roll-to-roll screen printing machine integrates printing and UV curing, supports automatic feeding and accurate registration for multi-pass printing, and offers simple operation via computer control and an HMI touchscreen. Key features include:

• Fully automatic computer control with HMI touchscreen for straightforward operation
• Adjustable printing speed and print length; automatic counting with stop at preset quantity or material run-out
• Automatic feeding with CNC tracking and micro-adjustment of screen position (front/back/left/right) for precise registration and repeated overprinting
• Squeegee driven by a high-performance servo motor system for precise positioning
• Imported pneumatic components and cylinders
• CNC paper-feed servo motor system for accurate overprint registration, stable feeding and long service life
• Special ultra-low temperature UV curing design to prevent deformation of heat-sensitive papers/films and to maintain registration accuracy during secondary printing
• Capable of printing on PVC, PET, transfer paper, films, polyester and self-adhesive label paper

Technical specifications:

• Max screen frame size: 550 × 700 mm
• Max. print area: 330 × 450 mm
• Max. substrate width: 350 mm
• Max. feed length: 450 mm
• Printing speed: 0–9000 impressions/h
• Machine size (L×W×H): *** × 1100 × 1700 mm
• UV dryer size: 1865 × 940 × 2000 mm
• Weight of the host: Net weight 1200 kg; Gross weight 1700 kg
• UV dryer weight: Net weight 600 kg; Gross weight 950 kg
• Power supply & Motor: Host power 220 V; UV dryer power 380 V; UV dryer heating power 10 kW
