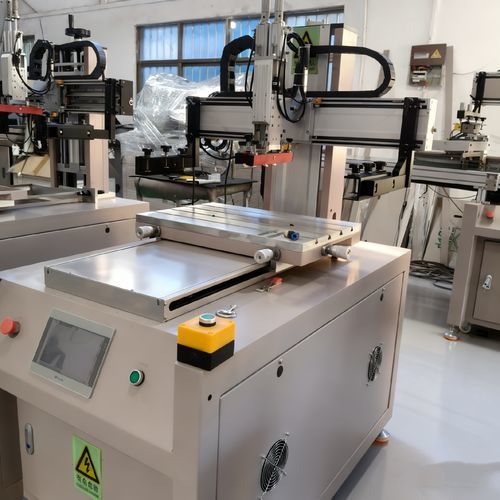

Electronic screen printer

for the plastics industryfor the paper industryhigh-accuracy

General description
This table sliding flatbed screen printing machine provides high-precision flat printing for a wide range of rigid and semi-rigid substrates. It is designed for detailed printing tasks on materials such as tempered glass, capacitive touchscreens and conductive ceramics, as well as plastics and metal sheets.

Customization & Applications

• Customization: special configurations can be tailored to client production requirements (frame size, vacuum layout, automation options).
• Primary applications: high-precision tempered glass, capacitive touchscreens, conductive ceramic components.
• Suitable materials: paper, plastics (PVC, PET), glass, ceramics, metal, solar panels, PCB panels.
• Industry use: electronics, electrical appliances, instrumentation and precision component manufacturing requiring fine flat printing.

Machine features

• Squeegee & flooding system: main structure in imported aluminum; pneumatic switching between squeegee and floodbar; quick, precise pressure and height adjustment with scale display for repeatable settings.
• Guidance: original Taiwanese cross-roller guides for accurate linear motion and positional stability.
• Worktable structure: GB-standard steel base for stability and anti-deformation; anodized aluminum table surface for increased hardness and scratch resistance.
• Worktable vacuum: silent blower vacuum source to provide constant suction with reduced noise during operation.
• Safety features: integrated safety guards, photoelectric sensors and emergency stop buttons for safe and reliable operation.

Specifications

• Output: 400-800 pcs/h
• Machine weight: 550 kg
• Worktable height from floor: 950 mm
• Worktable surface size: 400 mm × 600 mm
• Vacuum area: 300 mm × 500 mm
• Max. printing area: 400 mm × 600 mm
• Vacuum hole diameter: Ø1 mm
• Screen frame thickness range: 20 mm − 40 mm
• Screen frame adjustment: 4-corner adjustable, ±5 mm
