Fully-automatic screen printer
2-colormonochromemulti-color

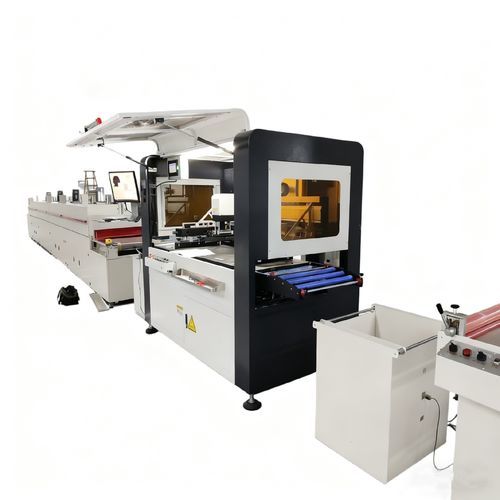

Fully-automatic screen printer - Shenzhen xinzhong plastic - 2-color / monochrome / multi-color
Fully-automatic screen printer - Shenzhen xinzhong plastic - 2-color / monochrome / multi-color
Fully-automatic screen printer - Shenzhen xinzhong plastic - 2-color / monochrome / multi-color - image - 2
Fully-automatic screen printer - Shenzhen xinzhong plastic - 2-color / monochrome / multi-color - image - 3
Add to favorites
Compare this product
Go to the Shenzhen xinzhong plastic website for more information

Characteristics

Control
fully-automatic
Number of colors
2-color, monochrome, multi-color
Applications
for labels
Other characteristics
compact, with touchscreen, high-accuracy, with UV curing system, vacuum, programmable, servo-driven, energy-efficient, roll-to-roll, high-speed
Printing speed

Min.: 1,200 p/h

Max.: 5,000 p/h

Description

Overview

  • Fully automatic roll-to-roll screen printing machine family designed for high-speed, repeatable registration on coiled or flat roll substrates. Suitable for labels, stickers and a wide range of industrial rolled materials. Optional UV curing and hot-air drying ovens.


Features & Advantages

  • Automatic roll-to-roll feed with repeatable color registration; typical production rate 1,200–5,000 impressions/hour depending on model and print size; single-operator capability.
  • Automatic constant-speed take-up oven with material dried along an oven path (options: standard lengths and 60–80 m circulation available); compact footprint compared with tunnel ovens.
  • Optional modules: punching, static elimination, film peeling/lamination, suction roller and other auxiliary devices.
  • Double-sided registration-mark tracking and optional double-sided printing using platform-mounted registration sensors.


Application Range

  • Screen printing on flat roll/coiled substrates: PET, PVC, OPP transfer films, pressure-sensitive labels, LED strips, underfloor heating films, decorative paper, FPC/PCB flex circuits, mobile phone keypads, 3M adhesive tapes, membrane switches, conductive films, adhesive labels, stainless steel foil, aluminum foil, copper foil and other rolled materials.


Warranty & Support

  • Supplier provides equipment installation, commissioning and operator training. One-year free warranty from commissioning date; lifetime technical support. Free repair during warranty period; wear parts charged at cost. Long-term service available.


Unwinder Features

  • Automatic feeding with static elimination. Maximum unwind/rewind diameter: 500 mm (customizable). Panasonic inverter control with adjustable speed 0–600 rpm. Photoelectric control to protect substrate surface; automatic film peeling and auto-stop on material end.


Main Machine Features

  • HMI touchscreen operation and PLC control for stable operation in industrial environments. Multi-color printing with photoelectric eye tracking; Panasonic PLC + LX101 registration sensor for automatic registration and stop on abnormalities.
  • Supports fixed-length, step, full-plate and sheet printing. Adjustable screen position, printing pressure, squeegee speed and screen-frame height. Programmable print speed and count with automatic stop and alarms at set values or on material run-out.
  • Built-in dust removal and three-stage suction (strong/weak/off) with intermittent suction and reverse air blow. Auxiliary inspection light, adjustable squeegee/flood blade angles, double-sided squeegee, CNC servo motors for segmented speed control and digitally set stroke. Suction-tension design prevents scratches and maintains constant tension. Automatic screen separation and touchscreen-controlled head lift; machine on casters for mobility.


Oven Features

  • Circulating hot-air drying with adjustable temperature and automatic take-up; thermal insulation for energy saving. Compact internal circulation path (~9 loops); standard drying length ~60 m (80 m available) enabling low-temperature drying to reduce shrinkage and deformation, beneficial for multi-color processes. Oven includes inspection light and movable casters.


UV Curing Unit (Optional)

  • Dual UV lamps (peak ~365 nm) using metal halide/high-pressure lamps suitable for thick or hard-to-cure UV inks. Instant surface curing in one pass; adjustable lamp height/angle and side-lamp distance. Dust-filtered intake, circulating cooling, leveling mechanism for uniform curing, stainless-steel mesh conveyor and energy-efficient power design.


Technical Specifications

  • Models: 4070S, 5080S, 6090S, 5010S, 80120S, 1010S, 6010S, 1020S.
  • Max feeding width (mm): 410, 510, 610, 510, 810, 1100, 610, 1100 respectively.
  • Max printing (L×W mm): 700×380; 800×480; 900×580; 1000×500; 1200×800; 1000×1000; 1000×600; 2000×1000.
  • Max screen frame (L×W mm): 1000×700; 1150×800; 1280×900; 1400×800; 1500×800; 1350×1450; 1350×900; 2350×1450.
  • Substrate thickness: 0.02–0.58 mm. Min print step: 5 mm. Main voltage: 380 V. Main power: typically 2.5–3.2 kW depending on model. Working air pressure: 4–8 kg/cm². Registration accuracy: ±0.05–0.15 mm depending on model.
  • Main machine sizes and oven power vary by model (see model-specific values); oven temperature range: room temperature to 175 °C; standard drying length: 60 m (80 m optional); max unwind/rewind diameter: 500 mm; unwinder voltage typically 220 V; unwinder power 0.3–0.5 kW.
