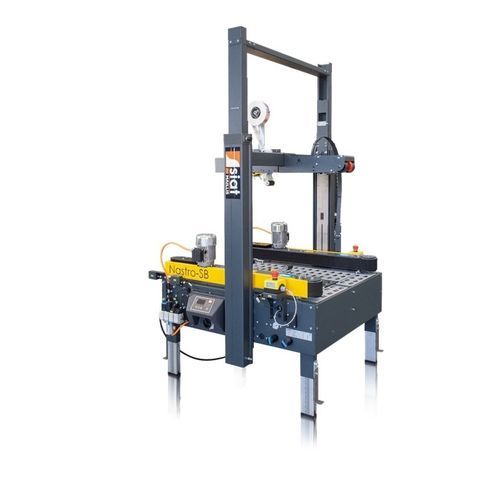

Double-flap case sealing machine NASTRO-SB™ R series

adhesive tapesemi-automatic

Overview The Nastro-SB™ R, designed and engineered by SIAT, is a semi-automatic case sealer for random box sizes. It supports small to king-size boxes and integrates IoT-enabled monitoring for packaging lines in e-commerce, food & beverage, chemical, clothing and industrial applications.

Advantages

• Accurate closing and sealing
• Easy to operate
• Reliable performance
• Reinforced structure for stability
• IoT-enabled monitoring and reporting
• Patented variable speed for faster throughput
• Energy-efficient operation

Key features

• Durable construction for continuous packaging operations
• Lockable electric switch for safe maintenance
• Central (R5) or double-sided (R6) emergency buttons
• Premium electrical components for longevity
• Reinforced belt conveyor and columns
• Quick Release Taping Heads (top & bottom) — tool-free
• Easy maintenance and quick belt replacement
• 75 mm belt conveyor height to handle low-profile boxes
• Optional end-of-tape and broken tape alarms
• On-board logic with bpm, consumable and operation reporting
• IoT ready
• Variable speed with 3 selectable levels

Models and box dimensions

• Nastro-SB™ R5B-S / R5T-S — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 150 – 500; H (mm) 120 – 500
• Nastro-SB™ R5B-L / R5T-L — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 105 – 500; H (mm) 50 – 500
• Nastro-SB™ R6B-S / R6T-S — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 150 – 650; H (mm) 120 – 650
• Nastro-SB™ R6B-L / R6T-L — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 105 – 650; H (mm) 50 – 650
• Nastro-SB™ R8B-S / R8T-S — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 150 – 800; H (mm) 90* – 800
• Nastro-SB™ R8B-L / R8T-L — Semi-automatic case sealer; box dimensions L (mm) 150 – ∞; W (mm) 105 – 800; H (mm) 50* – 800

Options

• Adjustable legs: low (440–700 mm) or max (760–1020 mm)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL / GTR)

Ideal for industries

• Wine & spirits
• Construction
• E-commerce

Technical specifications

• Machine type: Semi-automatic case sealer for random box sizes
• Adjustment: Manual adjustment for different box sizes
• Belt height: 75 mm
• Emergency controls: Central (R5) or double-sided (R6) buttons
• Taping heads: Quick Release top & bottom (tool-free)
• Control: On-board logic with IoT reporting (bpm, consumables, operation)
• Speed: Patented variable speed, 3 selectable levels
• Maintenance: Tool-free tape heads and easy belt replacement
• Alarms: Optional end-of-tape and broken tape alarms
• Structure: Reinforced conveyor and columns for stability
• Applications: E-commerce, food & beverage, chemical, clothing and general industry
