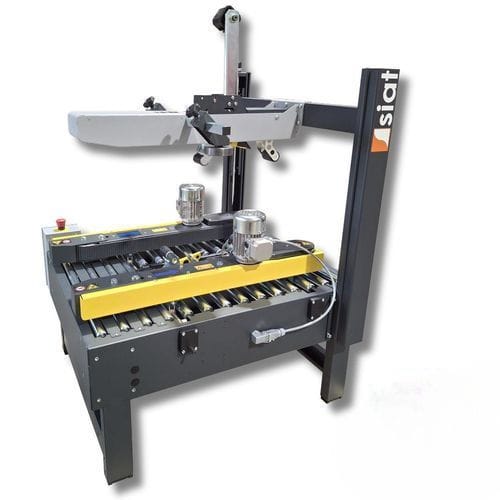

Four-flap case sealer S8

adhesive tapesemi-automatic

Overview The S8 / S8/4 is a semi-automatic case sealer designed and manufactured in Italy for small to medium fixed box sizes. The S8/4 variant processes very small boxes down to 100 mm (4 in) wide. Built for durability, simplicity and reliable performance, it features a SIAT taping unit, dual 50 mm side drive belts and quick height adjustment for fast setup.

Advantages

• Reliable and durable machine ensuring consistent performance
• Compact, sturdy design with minimal space requirement
• Dual 50 mm side belts and SIAT K taping units for precise sealing
• Fast tape changes, adjustable belts and a simple electric switch for quick operation

Key features

• Designed for durability with over 30 years of proven performance
• Perfect box traction via dual 50 mm belts for stable sealing
• Easy to set up: quick height adjustment and fast startup
• Best-in-class taping: smooth, consistent tape application using SIAT taping unit
• Handles small boxes: S8/4 processes boxes as narrow as 100 mm (4 in)
• Compact and customizable with optional casters, conveyors and adjustable legs
• Ready for immediate delivery (commonly in stock)

Dimensions Minimum and maximum box sizes for versions:

• S8 (Standard Box Version) — Minimum Box Dimensions (L x W x H): 150 x 150 x 120 mm
• S8/4 (Small Box Version) — Minimum Box Dimensions (L x W x H): 150 x 105 x 90 mm
• Maximum Box Dimensions (both versions): unlimited length x 500 x 500 mm

Options

• Casters for easy mobility
• GTL / GTR extendable conveyors for improved box handling
• Adjustable legs / workbench height adjustment: available ranges 585-925 mm or 685-1025 mm

Ideal for

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical industry

Technical specifications

• Model variants: S8 (standard) and S8/4 (small box version)
• Taping unit: SIAT (SIAT K taping unit referenced)
• Box traction: dual 50 mm side drive belts
• Minimum box width (S8/4): down to 100 mm (4 in)
• Minimum box dimensions: S8 = 150 x 150 x 120 mm; S8/4 = 150 x 105 x 90 mm
• Maximum box dimensions: unlimited length x 500 x 500 mm
• Quick setup: height adjustment and fast tape changes
• Optional accessories: casters, GTL/GTR conveyors, adjustable legs (workbench heights 585-925 mm or 685-1025 mm)
