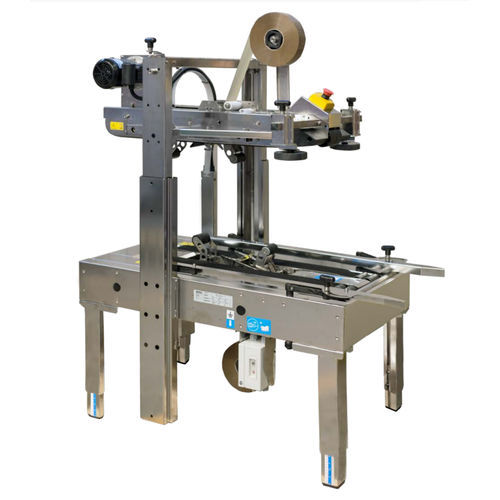

Double-flap case sealer SM2-I

adhesive tapesemi-automatic

Description
SM2-I is a semi-automatic case sealer with manual adjustment, constructed in stainless steel. It is designed for sealing boxes of uniform dimensions; all necessary adjustments are performed manually. The model is particularly suited to the food & beverage and chemical industries and for environments with high corrosion or exposure to aggressive chemicals.

Advantages

• Easy to use
• Fast adjustment
• Wear-resistant construction

Key features

• Adjustment of carton width and height by handles
• K11R taping unit (50 mm)
• Top and bottom drive belts
• Drive belt speed: 20 m/min
• 2 motors (0.13 kW each)
• Box dimensions (minimum): L 150 mm · W 140/170* mm · H 100 mm
• Box dimensions (maximum): L unlimited · W 500 mm · H 500 mm
• *With top side pressure rollers (minimum manageable width 205 mm)
• Upper guides required for box width less than 205 mm (optional)

Options

• Higher legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL - GTR)

Ideal for

• Wine & spirits
• Food & dairy
• Pharmaceutical industry

Technical specifications

• Machine type: Semi-automatic case sealer with manual adjustment
• Construction: Stainless steel
• Taping unit: K11R (50 mm)
• Drive: Top and bottom drive belts
• Drive belt speed: 20 m/min
• Motors: 2 × 0.13 kW
• Box dimensions (minimum): L 150 mm · W 140/170* mm · H 100 mm
• Box dimensions (maximum): L unlimited · W 500 mm · H 500 mm
• Optional: top side pressure rollers (allowing minimum manageable width 205 mm)
• Optional: upper guides required for box width < 205 mm
• Typical application sectors: Food & beverage, chemical, pharmaceutical (corrosive environments)
