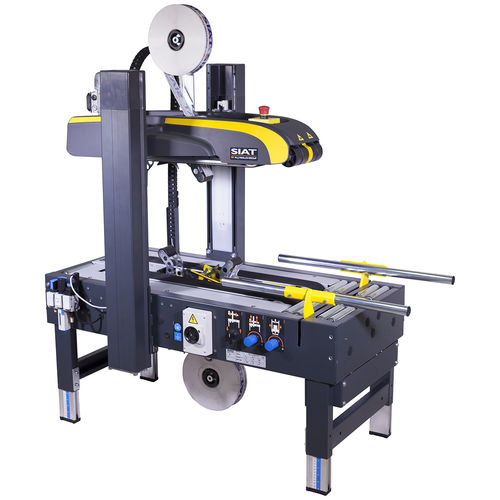

Semi-automatic case sealer SR20

double-flapadhesive tape

Product overview
SR20 is designed for packaging lines that process boxes of varying dimensions. The 4-belts box control ensures consistent sealing without jams, including with overstuffed or empty boxes. Pneumatic adjustment enables rapid adaptation to a wide range of box sizes. The dual-mast frame and branded components support continuous operation. The quick-removable taping head, easy access to motors and organized cable routing facilitate inspections and maintenance.

Advantages

• Reinforced frame design
• Precise control of the sealing process
• High uptime for continuous operation
• Accessible components for simplified maintenance

Key features

• Pneumatic adjustment of carton width and height
• Taping unit options: K11R (50 mm) or K12R (75 mm)
• Top and bottom drive belts (4-belts box control)
• Drive belt speed: 20 m/min
• 2 motors (0.13 kW each)
• Max. output: up to 15 bpm (average, depending on box dimensions)
• Box dimensions: Min. L 150 mm W 140 mm H 100 mm; Max. L ∞ W 500 mm H 500 mm

Options

• Higher legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL - GTR)

Ideal for

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical industry
• Logistics
• E-commerce

Technical specifications

• 4-belts box control for jam-free sealing (also for overstuffed and empty boxes)
• Pneumatic system for fast adaptation to various box sizes
• Quick-removable taping head and easy motor access for simplified maintenance
• Taping units: K11R (50 mm) or K12R (75 mm)
• Drive belts speed: 20 m/min
• Power: 2 motors, each 0.13 kW
• Maximum output: up to 15 boxes per minute (average, depending on box dimensions)
• Box size range: Min. L 150 mm W 140 mm H 100 mm — Max. L unlimited, W 500 mm, H 500 mm
