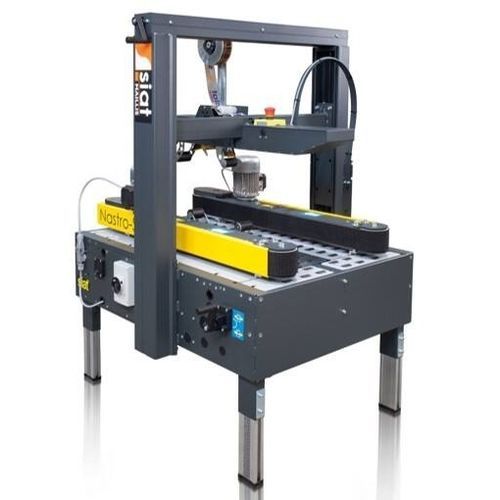

Double-flap case sealer NASTRO-SB™ – M series

adhesive tapesemi-automatic

Overview
The NASTRO-SB™ M is a range of semi-automatic case sealing machines designed by SIAT for sealing fixed-size cartons from small to king-sized formats. Suitable for food & beverage, chemical, apparel and wine industries, the range provides efficient sealing with straightforward manual adjustments.

Advantages

• Accurate closing and sealing for fixed boxes
• Easy manual adjustment between box sizes
• Industrial electrical components for continuous operation
• Reinforced structure for conveyor and columns

Key features

• Durable design for long operating life in packaging environments
• Lockable electric switch for safe maintenance
• Central (M5) or double-sided (M6–M8) emergency buttons for rapid stop
• High-quality electrical components for reliable operation
• Stable reinforced belt conveyor and columns for improved stability
• Quick Release Taping Heads (top & bottom) — tool-free changeover
• Easy and quick maintenance for belt conveyor replacement and upkeep
• 75 mm belt conveyor height to accommodate low-profile boxes

Models and Box dimensions
NASTRO-SB™ M5-S
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 500 H 120 – 500

NASTRO-SB™ M5-L
Semi-automatic case sealer – manual adjustment on the different box sizes (for small boxes)
Box dimensions
L (mm) 150 – ∞ W 105 – 500 H 50 – 500

NASTRO-SB™ M6-S
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 650 H 120 – 650

NASTRO-SB™ M6-L
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 105 – 650 H 50 – 650

NASTRO-SB™ M8
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 800 H 120 – 800

Options

• Higher legs: Nastro leg low height (440–700 mm)
• Nastro leg max height (760–1020 mm)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL-GTR)

Ideal for industries

• Wine & Spirits
• Construction
• Household, Consumer & Personal Care
• Food & Dairy
• E-commerce

Technical specifications

• Machine type: Semi-automatic case sealer for fixed box sizes
• Adjustment: Manual adjustment for different box sizes
• Taping heads: Quick Release Taping Heads (top & bottom) — tool-free
• Belt conveyor height: 75 mm
• Safety: Lockable electric switch; central (M5) or double-sided (M6–M8) emergency buttons
• Structure: Reinforced belt conveyor and columns for enhanced stability
• Electrical components: High-quality components for reliable operation
• Maintenance: Designed for easy and quick maintenance (belt conveyor changes)
• Available models: M5-S, M5-L, M6-S, M6-L, M8 (see Models and Box dimensions)
