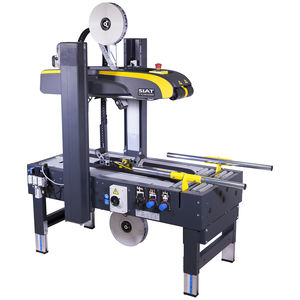

Double-flap case sealer SK10

adhesive tapesemi-automatic

Product overview
Semi-automatic case sealing machine engineered by SIAT for small and medium cardboard boxes. The SK10 performs reliable top and bottom flap sealing with manual, intuitive adjustment and quick, tool-free maintenance. Suitable for multiple industries including food & beverage, chemical, textiles and electronics.

Advantages

• Top and bottom flap sealing
• Easy to operate with fast manual adjustments
• Tool-free removable taping heads for quick maintenance

Key features

• Seals upper and lower flaps of cardboard cases or cartons
• Lockable electrical isolation switch for safe servicing
• Central emergency stop accessible from both machine sides
• High-quality SIEMENS electrical components
• Removable top and bottom taping heads with tool-free removal

Box dimensions
Min. L 150 mm • W 140 mm • H 90 mm
Max. L ∞ • W 500 mm • H 500 mm

Options

• Higher legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL-GTR)

Ideal for

• Food & Dairy; Food & Beverage; Chemical; Clothing; Textiles; Electronics

Technical specifications

• Product type: Semi-automatic case sealer with manual adjustment
• Sealing: Top and bottom flap sealing
• Adjustment: Manual, intuitive and fast
• Safety: Lockable electrical isolation switch; central emergency stop accessible from both sides
• Electrical components: SIEMENS components
• Taping heads: Removable top and bottom taping heads, tool-free removal
• Box size range: Min L 150 mm • W 140 mm • H 90 mm; Max L ∞ • W 500 mm • H 500 mm
• Typical applications: Food & Beverage, Chemical, Clothing, Textiles, Electronics
• Available accessories/options: AS80 higher legs; AS77 casters; RG roller conveyor; GTL-GTR extendable conveyor
