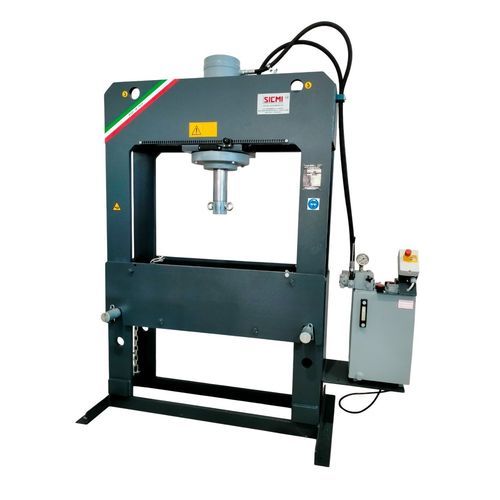

Hydraulic press PSS 70 TL

straighteninglaminationpunching

The PSS-TL workshop press is the ideal solution for a wide range of mechanical operations. Designed to maximize efficiency, it is perfect for straightening sheet metal, deforming metals or for assembly and disassembly of mechanical components. Equipped with a piston with a stroke of 350 mm, the PSS-TL integrates a hydraulic power unit with a single speed under 6 mm/sec. This model is therefore suitable for those mechanical workshops that make sporadic use of the electro-hydraulic press and that do not need either a high cylinder descent speed (as is instead available in the PSS and PSS-NC models) or a slower working speed to increase precision in the pressing phases. The PSS-TL press is characterised by its monolithic steel structure which guarantees excellent resistance even to the highest pressures and the wide front opening greatly facilitates the positioning of long or wide pieces. In addition, the PSS-TL's hollow work surface offers the flexibility needed to work on materials with height constraints. For additional support, a work support table is available as an option. The lifting of the work platform occurs by connecting chains to the eyebolts positioned in correspondence with the hydraulic cylinder, while the locking is ensured by steel pipes that eliminate any unwanted movement. The PSS-TL workshop press is also available in the version with a movable cylinder with transverse movement. This optional function is particularly useful because it allows the cylinder to be moved laterally and positioned with absolute precision on the exact point of the workpiece, eliminating the need to move the material. All this translates into considerable time savings and optimization of the processing. The piston is moved manually using a handle positioned on the cylinder flange, and once the optimal position has been identified, the cylinder can be locked firmly using a special knob that slides along a pre-drilled metal grid. As an optional alternative, the cylinder can be moved transversally using a handwheel. The flange slides along a rack and can be stopped at any point. This variant makes piston movement much easier and more precise than the standard handle version. The PSS-TL hydraulic workshop press is available in a wide range of powers, from 20 to 150 tons, to meet every specific production requirement. Accessories: – Cylinder stroke adjustment: Equipped with microswitches for extremely precise control of the maximum lifting and lowering point of the hydraulic cylinder. – Work support surface: For extra support and greater stability of the pieces during processing. – V-shaped prisms: Ideal for centering and stable support of profiles, bars and rounds. – Cylinder movement via handwheel: An ergonomic alternative to manual movement with a handle, available for versions with a mobile cylinder, which guarantees greater fluidity and precision in positioning. - Available in versions with movable cylinder (transverse movement) for precise positioning - Monolithic steel structure for maximum resistance - Wide front opening for easy positioning of large pieces - Optional work support table - Manual piston movement with handle or handwheel - Hydraulic power unit with single speed under 6 mm/sec - Suitable for sporadic use in mechanical workshops - Range of powers: 20 to 150 tons Technical Specifications: - Cylinder stroke: 350 mm - Single piston speed: under 6 mm/sec - Structure: Monolithic steel - Optional movable cylinder (transverse movement) - Optional accessories: Cylinder stroke adjustment, work support surface, V-shaped prisms, handwheel movement - Made in Italy
