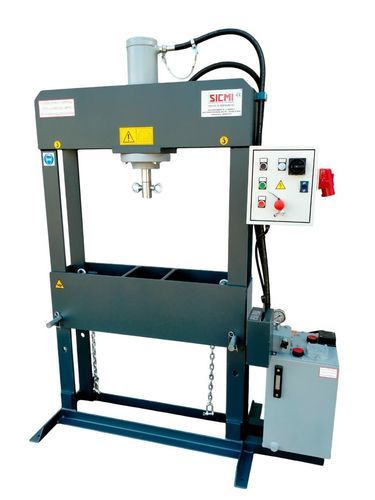

Hydraulic press PSS 40 NC

electro-hydraulicstraighteningfor production

Hydraulic workshop press suitable for various processes, including straightening sheet metal, assembling and dismantling bearings, bolts, washers, and for carrying out molding or material deformation work. The press frame is made of fully welded milled steel, allowing the machine to absorb even the highest pressures. The PSS-NC hydraulic press is therefore suitable for intensive use in maintenance and repair workshops or even in industrial plants. The large front opening allows you to easily place long or wide pieces. The work surface of the PSS-NC hydraulic workshop press is hollow, allowing the material to be processed at height. The work support surface is available as optional equipment. The PSS-NC press has a 350 mm piston stroke and is equipped with a two-speed control unit operating at less than 29 mm/sec. It is operated by simultaneously using the lever and the button, as required by current CE safety regulations for presses with a piston descent speed exceeding 10 mm/sec. The lifting of the work platform occurs via a chain to be connected to the hydraulic cylinder, and the blocking of the work surface is carried out using steel tubes, which eliminate any unwanted movements. The PSS-NC hydraulic workshop press is also supplied with a transverse movement mobile cylinder with manual control. This function is very useful because it allows you to move the cylinder laterally and then lower it to the exact point of the sheet metal you want to work on, without having to move the metal piece. The basic version requires the piston to be moved manually using a handle. The desired position is then locked using a knob located on a metal grid. As an optional alternative, the cylinder can be moved transversally using a handwheel. The flange slides along a rack and can be stopped at any point. This variant makes piston movement much easier and more precise than the standard handle version. The PSS-NC electro-hydraulic press is available as standard from 20 to 150 tons. Accessories: - Semi-automatic version with sensors that regulate the maximum height of the ascent and descent of the hydraulic cylinder - Work support surface - V-shaped prisms Standard Accessories: - Mobile cylinder – With handle - Maximum pressure valve - Metal blocks - Lever protection - Anchoring electrical cables - Anchoring hydraulic pipes - Stopflex anchor - Current transformer Optional Accessories: - Cylinder limit switches - Pair of V-shaped prisms - Metal support plate - Mobile cylinder – With handwheel - Stem anti-rotation device Technical Specifications / Features: - Model: PSS-NC - Type: Electro-hydraulic workshop press - Cylinder stroke: 350 mm - Available capacities: 20 to 150 tons - Two-speed control unit (less than 29 mm/sec) - Manual and optional handwheel transverse cylinder movement - Large front opening for easy placement of large pieces - Hollow work surface for processing at height - Frame: Fully welded milled steel - CE safety compliant
