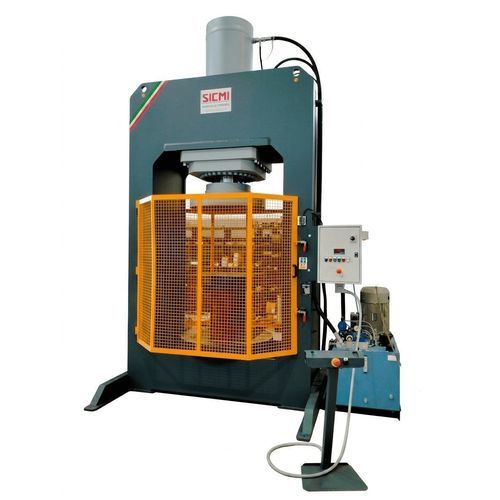

Hydraulic press PFC 500 G

straighteningH-frame

Overview
The 500-ton hydraulic press is engineered for demounting solid tires, including forklift and other heavy-duty tyres. The H-frame construction delivers the strength and stability required for high‑load industrial cycles.

Design
The H-shaped frame, movable upper table and enlarged lower work table provide a large working area and enable controlled pressing operations for large-diameter solid tires.

Technical features and performance

• Capacity: 500 tons nominal pressing force.
• Upright clearance: 1500 mm; maximum stem-to-platform clearance: 1500 mm.
• Cylinder stroke: 1000 mm.
• Tables: movable upper table Ø 900 mm; lower work table Ø 1100 mm.
• Hydraulic power unit: double-speed unit, 15 kW; speeds: approach 18 mm/s, working 3 mm/s.

Safety and certification
Equipped with front and rear mesh guardrails with safety microswitches, two-hand double pushbuttons and a digital pressure gauge for continuous tonnage monitoring. CE conformity is indicated for machine safety.

Applications
Intended for demounting and handling of solid tires in heavy‑duty industrial environments; suitable for tyre service lines and workshop integration where large tyres require controlled pressing force.

Technical specifications

• Nominal capacity: 500 tons
• Frame: H-shaped structure
• Upright clearance (max): 1500 mm
• Stem-to-platform clearance (max): 1500 mm
• Cylinder stroke: 1000 mm
• Upper movable table diameter: 900 mm
• Lower work table diameter: 1100 mm
• Hydraulic unit power: 15 kW (double-speed)
• Approach speed: 18 mm/s
• Working speed: 3 mm/s
• Safety: front and rear mesh guardrails with safety microswitches
• Controls: two-hand double pushbuttons; digital pressure gauge
• Primary use: demounting solid tires and heavy-duty tyre handling
