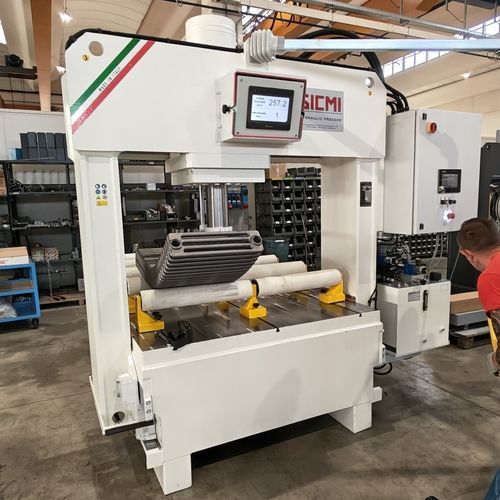

Hydraulic press PMM 150 MC

bendingportalPLC-controlled

Hydraulic press with mobile gantry: rolling and bending solutions for designer radiators
In the sheet metal and metal pipe manufacturing industry, flexibility and geometric precision are essential to meet the stylistic and structural requirements of custom radiator projects. This configuration enables accurate rolling and bending of curved or rolled radiators to integrate along concave or convex walls and circular spaces.

Technical features of the PMM 150 MC hydraulic press

• Thrust power: 150 Ton
• Pallet dimensions: 1500 x 2700 mm, milled steel with T-slots
• Cylinder stroke: 500 mm (clearance between stem and bed: 700 mm)
• Hydraulic movements: transverse translation of the cylinder 900 mm; longitudinal sliding of the upright 1800 mm
• Dedicated punches: stem equipped with a wide shaped punch protected by a rubber cover to preserve machined radiator surfaces during bending

Radiator calendering: precision and surface protection
Bending a steel radiant assembly requires applying uniform force to deform the complete curved structure without damaging tubular elements or altering existing welds. The combination of support rollers on the bed and a shaped rubberized punch on the stem allows gradual bending to achieve the exact radius of curvature required by project specifications.

Digital control and Industry 4.0 ready
The press is fitted with an advanced Siemens touch-screen panel connected to a wire encoder for stroke measurement and a pressure transducer to ensure cycle repeatability and decimal accuracy. The operator can configure up to 100 work programs and adjust parameters easily:

• Top and bottom dead center
• Pause and decompression times
• Operating pressure
• Micro-increments of descent with precision of 0.1 mm

The machine is Industry 4.0 ready and equipped with advanced safety systems to ensure production efficiency and operator protection.

Characteristics / technical specifications

• Brand: SICMI
• Model: PMM 150 MC
• Series: PMM MC
• Thrust: 150 Ton
• Pallet: 1500 x 2700 mm, milled steel with T-slots
• Cylinder stroke: 500 mm
• Clearance stem–bed: 700 mm
• Transverse translation (cylinder): 900 mm
• Longitudinal sliding (upright): 1800 mm
• Dedicated wide punch with rubber cover for surface protection
• Control: Siemens touch-screen panel, wire encoder for stroke, pressure transducer
• Programmability: up to 100 work programs
• Programmable features: top/bottom dead center, pause/decompression times, operating pressure
• Precision: micro-increments of descent 0.1 mm
• Industry 4.0 ready and equipped with advanced safety systems
