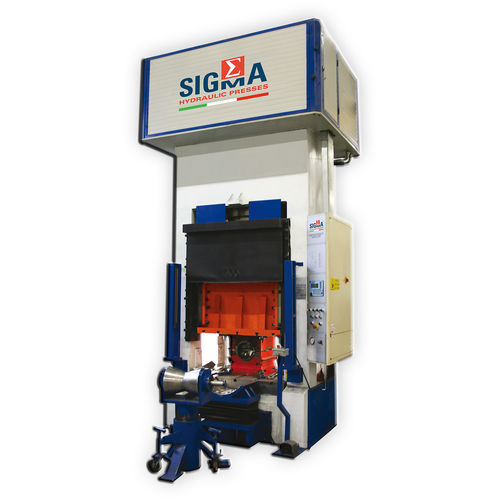

Hydraulic press processcalibrationfor the petroleum industry
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- process, calibration
- Applications
- for the petroleum industry, for pipes
- Structure
- straight-side
- Control
- automatic, PLC-controlled
- Other characteristics
- cold, customizable
- Force
Max.: 50,000 kN
Min.: 10,000 kN
Description
The presses for the calibration of pipes have dimensions from 10,000 kN to 50,000 kN. The function of these presses is to calibrate welded tubes, cold formed and obtained from sheet metal, which can be in carbon steel, stainless steel, duplex, super duplex and chromium steel. The pipes are used in oil & gas plants. The dimensions of the presses vary according to the size of the tubes to be processed: from 8 ”to 72” with a diameter of 1,828.8 mm. The presses for pipe calibration can have an automatic system with advance shuttle during the pipe calibration process. It is possible to install an automatic system for changing the mold. We manufacture sizing presses for stainless steel, X70, Duplex, Superduplex pipes up to 70 mm thick.
