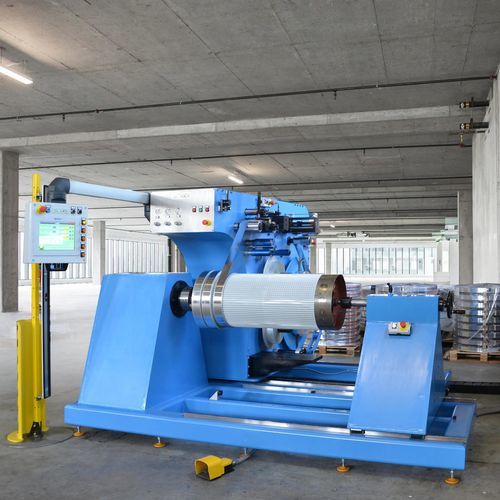

Tape winding machine AB series

mobileautomaticmotorized

Overview
This strip-type winding machine (models AB 450–AB 1000) is designed to produce windings directly on the resin casting mould for resin-encapsulated medium-voltage transformers. It accepts aluminium and copper strip conductors and supports coils up to 1700 mm in height. The integrated control system ensures repeatable winding quality and synchronized handling of conductor and insulation paper.

Main features

• Direct winding on resin casting mould
• Compatible with aluminium and copper strip conductors
• Standard configuration: 1 conductor decoiler; provision for 1 or 2 insulation decoilers
• TIG welding unit with selectable automatic or manual mode
• Electronic centring for precise strip alignment
• Flash/burr pressing device and edge-roll system to eliminate sharp edges
• Conductor cleaning system and re-wrapping of protective paper
• Synchronized rewinding of conductor and insulation paper
• Touch-screen control for straightforward operation

Technical data (selected)

• Maximum coil height: 1700 mm
• Conductor width: 30–170 mm
• Conductor thickness: 0.2–1.6 mm
• Inner conductor coil diameter: 300 / 400 mm
• Maximum conductor coil diameter: up to 1000 mm
• Maximum tape tension: 1300 N
• Spindle maximum speed: 120 rpm
• Machine weight: approx. 3800 kg
• Dimensions: 2800 × 3250 × 1950 mm (H)
• Installed power: 6 kW, 380 V three-phase

Options and customization

• Second welding system (TIG or spot welding)
• Customized locking and paper-handling systems
• Mobile decoiler trolley and additional automation modules

Operator interface and maintenance

• Programmable winding cycles with automatic stop at set turns
• Real-time display of turns and tension on control console
• Brake/retention system on spindle to prevent coil relaxation
• Easy access for cleaning and routine maintenance
