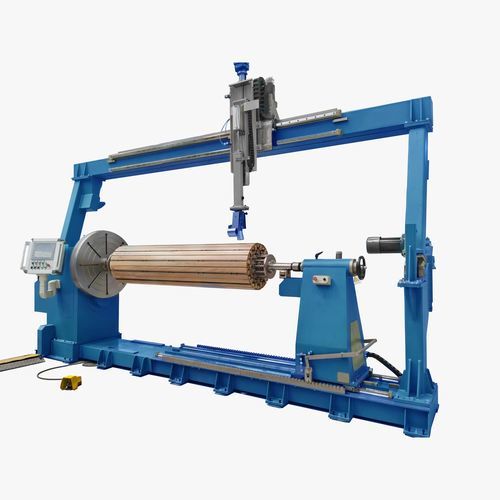

Cable winding machine SIL series

wireprecisionmanual

Description
The SIL 2000 and SIL 2500 winding machines are designed for horizontal windings of copper or aluminium flat‑round conductors and for CTC cable used in oil‑filled power transformers.

Category
Winding machines for transformers

Key features

• Pedal speed control
• Programmable touch‑screen control
• Guides for CTC cable or flat‑round conductor
• Motorized CTC conductor roll holder

Options

• Programmable pedal control
• Conductor brake
• Additional guide for wire and rectangular wire
• Decoiler
• Expansion imprint with round or oval shape
• Motorized carriage for CTC or rectangular wire

Strengths

• Precise and powerful machine
• Compact windings

Technical data
Winding
Width: Max 3500 mm
Diameter: Max 2000 mm
Weight: approx. 7000 kg

Spindle
Rotation speed: Max 30 rpm

Specifications

• Models: SIL 2000, SIL 2500
• Winding type: Horizontal windings for flat‑round (copper/aluminium) and CTC cable
• Speed control: Pedal (programmable pedal optional)
• Control and programming: Programmable touch screen
• Guides: Guides for CTC cable or flat‑round conductors; additional guides optional
• Available accessories: Conductor brake, decoiler, motorized carriage for CTC/rectangular wire
• Expansion imprint: Round or oval shape (option)
• Max winding width: 3500 mm
• Max winding diameter: 2000 mm
• Indicative machine weight: 7000 kg
• Spindle rotation speed: up to 30 rpm
