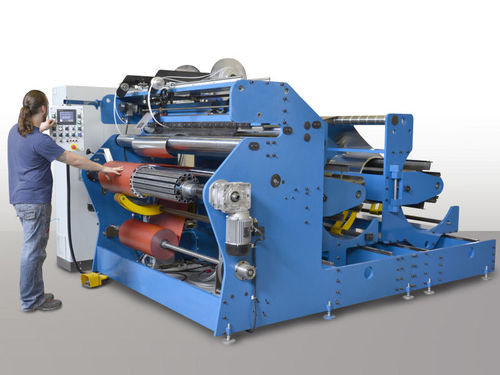

Film winding machine BT-400-1600

for rollswith cutting systemautomatic

Overview
The BT400-1600 winding machine is designed and constructed for low-voltage windings in copper and aluminium foil with a maximum winding height of 1600 mm. Units are manufactured to customer technical specifications to match required foil width and overall dimensions. On request, the machine can produce oval or rectangular windings.

Primary features

• 1 or 2 decoilers for the conductor foil
• 1 decoiler for insulation
• TIG welding unit with automatic or manual welding system
• Electronic centring system for precise foil alignment
• Flash/burr-pressing device
• Multiple edge-filling strip units
• Easy-to-use touchscreen control
• Synchronized rewinding system for conductor and insulation paper

Optional configurations

• 2 decoilers for insulation
• Cold welding
• Re-wrapping of decoiler paper
• Circular or oval winding shapes
• Automatic conductor foil cutting system
• Insulation paper trimming or cutting system

Control and quality
The electronic alignment and tensioning system ensures high-quality windings. The welding unit can operate in automatic or manual mode to suit production needs. The machine integrates synchronized handling of conductor and insulation to maintain consistent tension and register.

Key benefits

• High precision
• Compact machine footprint
• High productivity with a simple, easy-to-use system
