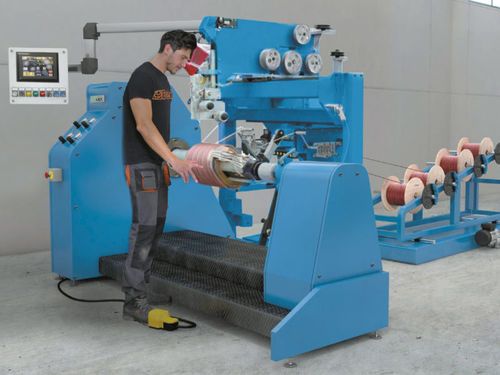

Wire winding machine SIL 800

motorizedautomatic

Description
SIL 800 is designed for winding copper or aluminum rectangular strip and round wire for distribution transformers. It supports simultaneous feeding of multiple strips or wires and can perform both traditional layer insulation and progressive insulation.

Features

• Up to 4 rectangular conductors and 2 round wires simultaneously
• Programmable via touch screen control
• Conductor tensioning system
• Additional guides for wire and strips
• Two insulating roll holders

Options

• Speed control via foot pedal
• Conductor brake
• Extra guide for round and rectangular wire
• Decoiler
• Mandrel expansion imprint: round or oval

Key advantages

• High production speed
• Elevated productivity with a simple, operator-friendly system
• Compact windings achievable even with oval profiles

Technical specifications

• Winding width: Max 1200 mm
• Winding diameter: Max 800 mm
• Machine weight: 3900 kg
• Spindle rotation speed: Max 200 rpm
• Rectangular conductors: Max 4
• Round wires: Max 2
• Control and programming via touch screen
• Conductor tensioning and optional conductor brake
• Additional guides for strip and rectangular wire
• 2 insulating roll holders
• Optional decoiler and round/oval mandrel expansion imprint
