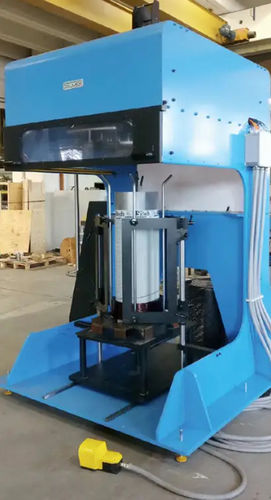

Wire winding machine SIL 48

automatic

The high quality of the insulation used in modern conductors, both in enameled wire and polyester-taped wire, achieves insulation values between windings of over 6300 volts. For this reason, thanks to the high-quality layering that can be achieved with the machine, high-quality results have been obtained. By adopting this technique, over a ten-year period, Siltech has produced more than 32,500 windings, which have been sold to various Italian and foreign customers, with a failure rate of only 0.4% during operation. The failures were due to low dielectric voltage or ground faults. No failures have been identified due to dielectric failure between the windings. Technical Characteristics (SIL 48S): Power-supply voltage: 380 Volt Overall installed power capacity: 4 KW Weight: 2100 Kg Round winding: minimum 205 mm, maximum 550 mm Coil height: 0÷1300 mm Maximum conductor diameter: 5.00 mm Oval Winding: max 730×980 mm, min 250×280 mm Technical Characteristics (SIL 48M): Power-supply voltage: 380 Volt Overall installed power capacity: 4 KW Weight: 2200 Kg Round winding: max 730 mm, min 250 mm Oval Winding: max 730×980 mm, min 250×280 mm Coil height: 0÷1600 mm Maximum conductor diameter: 6.00 mm
