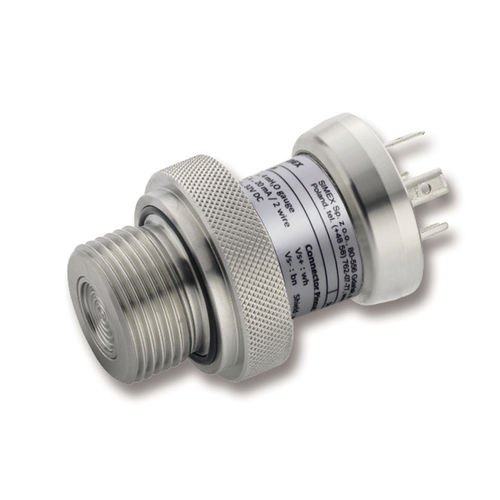

Hydrostatic level transmitter CPA-P-331
for water4-20 mA2-wire

Hydrostatic level transmitter - CPA-P-331 - SIMEX Sp. z o.o. - for water / 4-20 mA / 2-wire
Hydrostatic level transmitter - CPA-P-331 - SIMEX Sp. z o.o. - for water / 4-20 mA / 2-wire
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Technology
hydrostatic
Medium
for water
Interface
4-20 mA, 2-wire, 3-wire
Applications
for silo, for the food and beverage industry, for storage tanks, for industrial applications, low-pressure, fuel tank, high-temperature, for marine applications, rugged, for the pharmaceutical industry, for fill monitoring, for atmospheric vessels, for food applications, for pressurized vessels, for hygienic applications
Other characteristics
stainless steel, compact, high-precision, flexible, IP68, IP67, IP65
Level range

Min.: 1 m
(3'03" )

Max.: 400 m
(1312'04" )

Process pressure

Min.: 0.1 bar
(1.45 psi)

Max.: 40 bar
(580.15 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

The screw-in transmitter CPA-P-331 has been designed for continuous level measurement and is characterized by an excellent performance and a robust construction. The modular construction allows the user the highest possible flexibility in the adaption of CPA-P-331. Specification Measurement range - 0...100 mbar up to 0...40 bar 0...1 mH2O do 0...400 mH2O Output type - 0...5V, 3-wire 4...20 mA, 2-wire 0...20 mA, 3-wire 0...10V, 3-wire Electrical connection - connector M12x1 Binder 723 cable outlet ISO 4400 compact field housing stainless steel Probe diameter - Ø40 mm Diaphragm - stainless steel Power supply - 8...32V DC 14...30V DC 10...28V DC Accuracy - ±0,1% ±0,35% ±0,25% ±0,5% Medium temperature - -40...+125°C Protection class - IP 65 IP 67 IP 68 Case material - stainless steel Case dimensions - Ø40 x 84,5 mm

Catalogs

No catalogs are available for this product.

See all of SIMEX Sp. z o.o.‘s catalogs
Go to the SIMEX Sp. z o.o. website for more information
