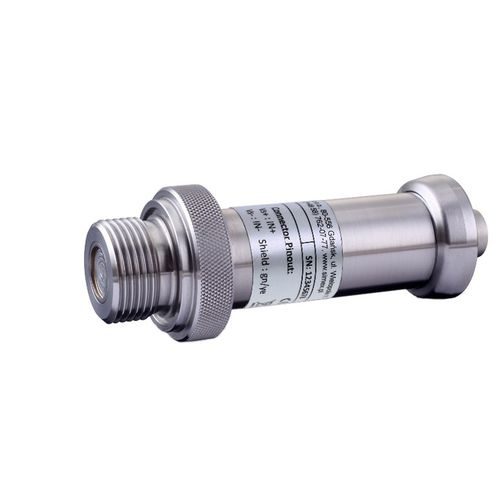

Hydrostatic level transmitter CPA-P-331i
for liquids4-20 mA2-wire

Hydrostatic level transmitter - CPA-P-331i - SIMEX Sp. z o.o. - for liquids / 4-20 mA / 2-wire
Hydrostatic level transmitter - CPA-P-331i - SIMEX Sp. z o.o. - for liquids / 4-20 mA / 2-wire
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Technology
hydrostatic
Medium
for liquids
Interface
4-20 mA, 2-wire
Applications
for storage tanks, for industrial applications, for the food and beverage industry, fuel tank, for hygienic applications, for marine applications, for atmospheric vessels, high-temperature, low-pressure, rugged, for silo, for the food industry, for the petrochemical industry, for food applications, for the pharmaceutical industry, for corrosive environments, for pressurized vessels, for the chemical industry, for fill monitoring
Other characteristics
stainless steel, compact, high-precision
Level range

Min.: 4 m
(13'01" )

Max.: 400 m
(1312'04" )

Process pressure

Min.: 0.4 bar
(5.8 psi)

Max.: 40 bar
(580.15 psi)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 125 °C
(257 °F)

Description

16-bit analogue digital converter Turn-Down 1:10 areas of application: chemical / petrochemical industry, environmental industry The precision screw-in transmitter CPA-P-331i demonstrate the further development of our industrial pressure transmitters. The signal processing of sensor signal is done by digital electronics with 16-bit analogue digital converter. Consequently it is possible to conduct an active compensation and the transmitters with excellent maesurements and exceptionally attractive price to offer on the market. Specification Electrical connection - connector M12x1 Binder 723 cable outlet ISO 4400 Probe diameter - Ø40 mm Power supply - 12...36V DC 14…28V DC Accuracy - ±0,1% Case dimensions - Ø40 x 84,5 mm
