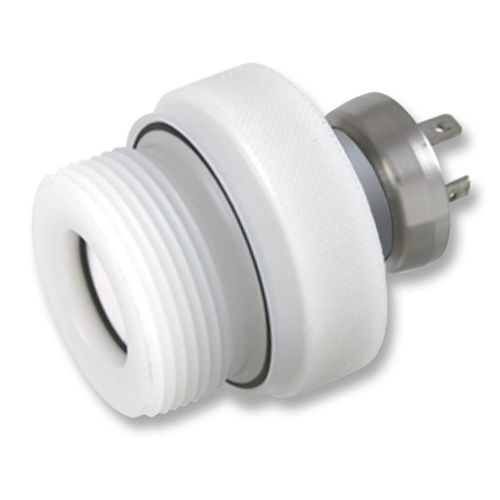

Hydrostatic level transmitter CPA-K-351
for waterfor wastewaterfor oil

Add to favorites

Compare this product

Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Technology

hydrostatic

Medium

for water, for wastewater, for oil, for corrosive liquids, for high-viscosity liquids, for sludge, for aggressive liquids, for fuel

Interface

4-20 mA, 2-wire, 3-wire

Applications

rugged, for storage tanks, for monitoring, for pressurized vessels, low-pressure, for industrial applications, for the food and beverage industry, fuel tank, high-temperature, for fill monitoring, for marine applications, for silos, for corrosive environments, for medical applications, for the food industry, for atmospheric vessels, for hygienic applications, for food applications, for the pharmaceutical industry

Other characteristics

stainless steel, high-precision, compact, IP67, IP68, IP65

Level range

Max.: 20,000 cm
(656.17 in)

Min.: 40 cm
(15.75 in)

Process pressure

Max.: 20 bar
(290.08 psi)

Min.: 0.04 bar
(0.58 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The screw-in transmitter CPA-K-351 has been designed for measuring small system pressure and level measurement in container. The CPA-K-351 is based on an own-developed capacitive ceramic sensor element. Usage in viscous and pasty media is possible because of the flush mounted sensor. For the usage in aggressive media a pressure port in PVDF and the diaphragm in AI2O3 99.9 % is available. An intrinsically safe version complete the range of possibilities. Specification Measurement range - 0...40 mbar up to 0...20 bar 0...0,4 mH2O up to 0...200 mH2O Output type - 4...20 mA, 2-wire 0...10V, 3-wire Electrical connection - connector M12x1 Binder 723 cable outlet ISO 4400 compact field housing stainless steel Probe diameter - Ø65 mm Diaphragm - ceramics Al2O3 (99.9 %) ceramics Al2O3 (96 %) Power supply - 9…32V DC 14…28V DC 12,5…32V DC Accuracy - ±0,35% ±0,25% ±0,5% Medium temperature - -40...+125°C Protection class - IP 65 IP 67 IP 68 Case material - PVDF stainless steel Case dimensions - Ø65 x 101,5 mm
