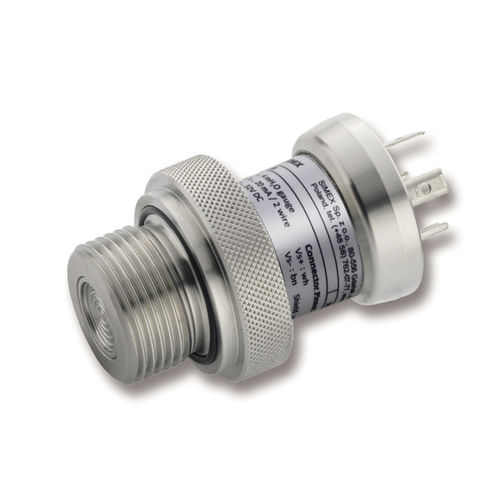

Hydrostatic level transmitter CPA-K-331
for waterfor wastewaterfor oil

Add to favorites

Compare this product

Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Technology

hydrostatic

Medium

for water, for wastewater, for oil, for corrosive liquids, for high-viscosity liquids, for sludge, for aggressive liquids, for fuel

Interface

4-20 mA, 2-wire, 3-wire

Applications

for the food and beverage industry, for storage tanks, for industrial applications, for monitoring, low-pressure, rugged, fuel tank, high-temperature, for marine applications, for food applications, for fill monitoring, for silos, for medical applications, for atmospheric vessels, for hygienic applications, for corrosive environments, for the food industry, for pressurized vessels, for the pharmaceutical industry

Other characteristics

stainless steel, high-precision, compact, IP67, IP68, IP65

Level range

Max.: 600 m
(1968'06" )

Min.: 4 m
(13'01" )

Process pressure

Max.: 60 bar
(870.23 psi)

Min.: 0.4 bar
(5.8 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The screw-in transmitter CPA-K-331 has been especially designed for level and process measurement and is suitable for pressure measurement of liquids, oils and gases. Usage in more viscous or polluted media is possible because of the semi-flush pressure sensor. For the usage in aggressive media we recommended the version with PVDF pressure port. Specification Measurement range - 0...400 mbar up to 0...60 bar 0...4 mH2O up to 0...600 mH2O Output type - 4...20 mA, 2-wire 0...10V, 3-wire 0...20 mA, 3-wire Electrical connection - connector M12x1 Binder 723 cable outlet DIN 43 650 compact field housing stainless steel Probe diameter - Ø40 mm Diaphragm - ceramics Al2O3 (96 %) Power supply - 8...32V DC 14...30V DC 10...28V DC Accuracy - ±0,5% ±1% Medium temperature - -40...+125°C Protection class - IP 65 IP 67 IP 68 Case material - PVDF stainless steel Case dimensions - Ø40 x 84,5 mm
