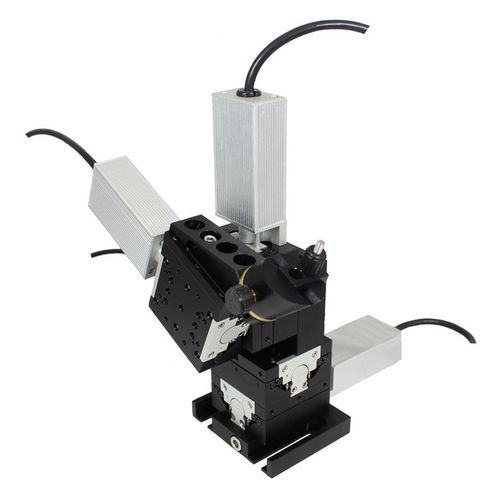

Motorized micromanipulator MX7600

4-axis3-axis

The MX7600 motorized crossed roller bearing micromanipulator is ideal for patch recording experiments. It offers exceptionally smooth linear travel and uses a precision preloaded lead screw to ensure drift-free operation. The motorized 3 or 4-axis micromanipulator incorporates the MXC-45 pipette holder mounted to an adjustable clamp on the probe axis, allowing the MXC-45 and probe axis to be adjusted to the desired angle of approach from 0 to 180° for a true axial approach. The MXC-45's built-in rotational stop allows easy pipette replacement.

Product Features

• Motorized manipulator, 3 or 4-axis, base mount
• 1.7 mm/second rapid positioning
• Linear approach on probe axis
• Repeating probe holder
• Holds mounting rods from 3- to 10-mm in diameter

Performance Specifications

• Maximum load: 2 lbs
• Travel / axis: 0.80 inch [20 mm]
• Minimum controllable motion: 0.1 µm
• Backlash: < 5 µm
• Point to point accuracy: ± 2 µm

Characteristics / Technical Specifications

• Product type: Motorized crossed roller bearing micromanipulator
• Application: Patch recording experiments
• Axes: 3 or 4 (motorized)
• Mount: Base mount
• Rapid positioning speed: 1.7 mm/second
• Linear travel per axis: 20 mm
• Minimum controllable motion: 0.1 µm
• Backlash: < 5 µm
• Point to point accuracy: ± 2 µm
• Maximum load: 2 lbs
• Compatible mounting rods: 3-10 mm diameter
• Adjustable probe axis angle: 0° to 180°
• Integrated MXC-45 pipette holder with rotational stop
