4-axis micromanipulator MX160

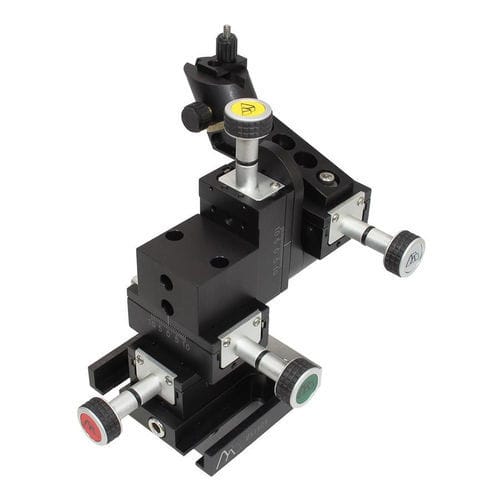

The MX160 Series Manipulator is a precision 4-axis micromanipulator designed for manual, base-mounted applications, offering 20mm travel. It utilizes a spring-loaded lead screw design against a solid stop, ensuring drift-free operation. The MX160 features fast-pitch, screw drive positioning and smooth ball bearing motion in the X, Y, Z, and probe axes for precise positioning. Color-coded knobs help identify axis location in low light conditions. The top stage can tilt at any angle through 360° and provides 22 mm of linear travel along the probe axis, making it ideal for axial cell probing.

Product Features

• Rotatable mounting base
• Linear approach on probe axis
• Repeating probe holder
• Ball bearing manipulator, 4-axis
• Holds mounting rods from 3- to 10-mm in diameter

Performance Specifications

• Maximum load: 2 lbs
• Travel per axis: 0.86 inch (22 mm)
• Minimum controllable motion: 10 µm (based on 1° of adjustment screw rotation)

Caractéristiques / spécifications techniques

• Manual, base-mounted micromanipulator
• 4-axis movement: X, Y, Z, and probe axes
• Spring-loaded lead screw for drift-free operation
• Fast-pitch screw drive positioning
• Color-coded knobs for axis identification
• Top stage tilts 360°
• 22 mm linear travel on probe and X axes
• Compatible with mounting rods 3-10 mm diameter
• Maximum load: 2 lbs
• Minimum controllable motion: 10 µm
