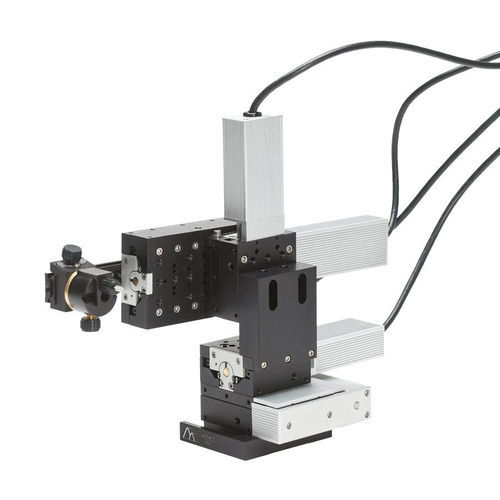

4-axis micromanipulator MX7800

The MX7800 is a 4-axis micromanipulator designed for advanced patch-recording and multiple recording experiments, offering a compact footprint for mounting multiple manipulators around a microscope. Its innovative folded Y-axis stage, based on the proven 7600 and 7700 series, allows up to six micromanipulators to be arranged in a semicircle, optimizing workspace efficiency. The X, Y, and Z axes each provide 20mm of travel, while the tilted axial axis offers a full 50mm of travel, facilitating easy electrode change-out even in tight spaces. The MX7800 includes both MXC and MXC-D style head stage mounts, and is compatible with mounting rods from 3mm to 10mm in diameter.

Product Features

• Narrow 4-axis manipulator
• 50-mm travel axial stage
• Folded narrow Y-axis stage
• Dovetail and V-grooved head stage mounts included
• Holds mounting rods from 3- to 10-mm in diameter
• RoHS compliant
• CE compliant

Performance Specifications

• Maximum load: 5 lbs

Travel / axis

• X, Y and Z: 0.80 inch [20 mm]
• Tilt: 1.96 inch [50 mm]

Minimum controllable motion

• Each axis: 0.1 µm
• Backlash: < 5 µm
• Point to point accuracy: ± 2 µm

Characteristics / Technical Specifications

• SKU: 71040000E
• Manual/Motorized: MANUAL
• Travel: 50MM/2.0IN (axial), 20MM/0.8IN (X, Y, Z)
• Number of axes: 4 (X, Y, Z, Tilt)
• Head stage mounts: MXC and MXC-D included
• Compliance: RoHS, CE
• Maximum load: 5 lbs
• Minimum controllable motion: 0.1 µm
• Backlash: < 5 µm
• Point to point accuracy: ± 2 µm
