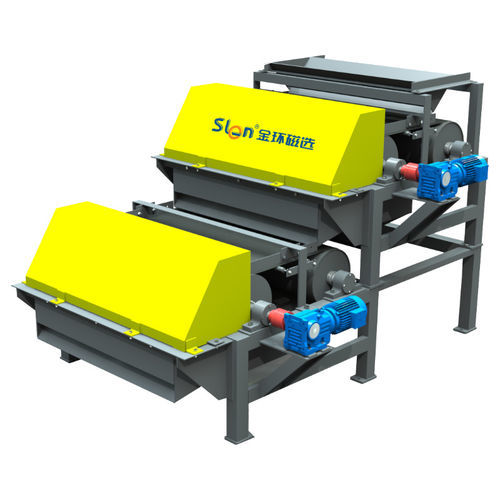

Dry materials separator SGTQ-0105magnetic drumprocessfor ore
Add to favorites
Compare this product
Characteristics
- Separated substance
- dry materials
- Technology
- magnetic drum
- Application domain
- process, for ore
- Other characteristics
- high-efficiency, dry, high-performance, high-intensity, raw materials
Description
It's suitable for processing hematite, limonite, specularite, chromite, manganese ore, wolframite and other weak magnetic minerals in the tailing discarding stage; Remove harmful magnetic impurities from different products.
Product Features
High magnetic field(up to 15000Gs);
The mass and grade of both concentrate and tailings can be controlled through stepless speed regulation of roller and adjustment of the separator.
Product Details
How does it work?
The materials convey into belt by vibrating feeder with uniformly layering, when materials pass through the strength magnetic roller, the magnetic particles are adsorbed to the strength magnetic roller due to the magnetic force, with rotation of the belt, the magnetic particles break away from magnetic filed and fall into mags collect hopper, nonmagnetic materials are discharged over the roller in a normal trajectory, then fall into non-mags collect hopper. The equipment can be configured into a multi-layer separation structure.
Product Features
High magnetic field(up to 15000Gs);
The mass and grade of both concentrate and tailings can be controlled through stepless speed regulation of roller and adjustment of the separator.
Product Details
How does it work?
The materials convey into belt by vibrating feeder with uniformly layering, when materials pass through the strength magnetic roller, the magnetic particles are adsorbed to the strength magnetic roller due to the magnetic force, with rotation of the belt, the magnetic particles break away from magnetic filed and fall into mags collect hopper, nonmagnetic materials are discharged over the roller in a normal trajectory, then fall into non-mags collect hopper. The equipment can be configured into a multi-layer separation structure.
