Ferrous metal separator RCDD series

electromagneticfor oreautomatic

Product Description:

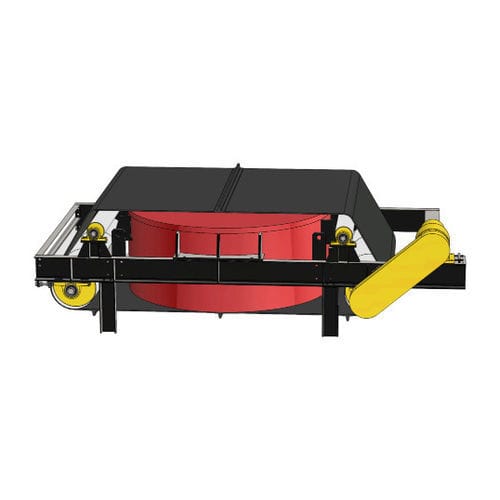

The RCDD series self-unloading electromagnetic separator is an electromagnetic iron removal machine developed by SLon based on years of experience in the research and development of magnetic separation equipment. It adopts new thermally conductive and insulating materials, which has a unique magnetic core structure and magnetic circuit design. It’s suitable for conveying and removing iron in various precious metal, heavy metal, light metal, and rare metal industries, which is recommended for use in harsh environments.

Product Features:

• Compact structure, easy maintenance, automatic belt alignment, unique magnetic system, excellent cooling, low temperature rise, low noise, and simple operation.
• Can achieve centralized control and continuous iron suction and removal.

How it works:
When energized, the electromagnet generates a powerful magnetic field that penetrates the material layer passing beneath it. Magnetic particles are attracted upward from the material stream and held against the belt. Meanwhile, the belt rotates continuously, carrying the captured ferrous material sideways and out of the magnetic field zone. Once outside the effective magnetic area, the trapped iron automatically falls off due to gravity, achieving self-unloading without the need for manual intervention.

Caractéristiques / Spécifications techniques:

• RCDD-5 — Cooling Method: Natural Cooling; Belt Width (mm): 500; Rated Hoisting Height (mm): 150; Excitation Power (kW): ≤2; Magnetic Intensity (mt): ≥70; Motor Power (kW): 1.5; Dimensions (A,B,C,D,E,F) (mm): 2162, 1108, 666, 1324, 972, 450; Weight (kg): 935.
• RCDD-6 — Cooling Method: Natural Cooling; Belt Width (mm): 650; Rated Hoisting Height (mm): 200; Excitation Power (kW): ≤3; Magnetic Intensity (mt): ≥70; Motor Power (kW): 1.5; Dimensions (A,B,C,D,E,F) (mm): 2278, 1223, 609, 1440, 1087, 394; Weight (kg): 1017.
• RCDD-8 — Cooling Method: Natural Cooling; Belt Width (mm): 800; Rated Hoisting Height (mm): 250; Excitation Power (kW): ≤4.5; Magnetic Intensity (mt): ≥70; Motor Power (kW): 2.2; Dimensions (A,B,C,D,E,F) (mm): 2550, 1310, 710, 1400, 1210, 500; Weight (kg): 1750.
• RCDD-10 — Cooling Method: Natural Cooling; Belt Width (mm): 1000; Rated Hoisting Height (mm): 300; Excitation Power (kW): ≤5; Magnetic Intensity (mt): ≥70; Motor Power (kW): 3.0; Dimensions (A,B,C,D,E,F) (mm): 3090, 1587, 854, 1850, 1350, 560; Weight (kg): 2162.
• RCDD-12 — Cooling Method: Natural Cooling; Belt Width (mm): 1200; Rated Hoisting Height (mm): 350; Excitation Power (kW): ≤6.5; Magnetic Intensity (mt): ≥70; Motor Power (kW): 3.0; Dimensions (A,B,C,D,E,F) (mm): 3390, 1777, 960, 1950, 1550, 670; Weight (kg): 3045.
• RCDD-14 — Cooling Method: Natural Cooling; Belt Width (mm): 1400; Rated Hoisting Height (mm): 400; Excitation Power (kW): ≤12; Magnetic Intensity (mt): ≥70; Motor Power (kW): 4.0; Dimensions (A,B,C,D,E,F) (mm): 3500, 1950, 1050, 2000, 1650, 760; Weight (kg): 5000.
• RCDD-16 — Cooling Method: Natural Cooling; Belt Width (mm): 1600; Rated Hoisting Height (mm): 450; Excitation Power (kW): ≤14.5; Magnetic Intensity (mt): ≥70; Motor Power (kW): 5.5; Dimensions (A,B,C,D,E,F) (mm): 3800, 2260, 1150, 2100, 1850, 880; Weight (kg): 7600.
• RCDD-18 — Cooling Method: Natural Cooling; Belt Width (mm): 1800; Rated Hoisting Height (mm): 500; Excitation Power (kW): ≤18; Magnetic Intensity (mt): ≥70; Motor Power (kW): 7.5; Dimensions (A,B,C,D,E,F) (mm): 4400, 2580, 1180, 2150, 2050, 1060; Weight (kg): 11000.
• RCDD-20 — Cooling Method: Natural Cooling; Belt Width (mm): 2000; Rated Hoisting Height (mm): 550; Excitation Power (kW): ≤23.5; Magnetic Intensity (mt): ≥70; Motor Power (kW): 7.5; Dimensions (A,B,C,D,E,F) (mm): 4550, 2700, 1200, 2100, 2250, 1200; Weight (kg): 12600.
• RCDD-T Small and Medium Series — RCDD-6 T1: Belt 650 mm; Hoisting 200 mm; Excitation ≤4 kW; Magnetic Intensity 90 mt; Motor 1.5 kW; Dimensions (A,B,C) mm: 2300, 1223, 609; Weight 1020 kg.
  RCDD-6 T2: Belt 650 mm; Excitation ≤7.5 kW; Magnetic Intensity 120 mt; Motor 2.2 kW; Dimensions (A,B,C) mm: 2400, 1300, 750; Weight 2100 kg.
  RCDD-6 T3: Belt 650 mm; Excitation ≤9.5 kW; Magnetic Intensity 150 mt; Motor 2.2 kW; Dimensions (A,B,C) mm: 2900, 1300, 900; Weight 3200 kg.
• RCDD-8 (T series): Belt 800 mm; Hoisting 250 mm.
  T1: ≤7.5 kW, Magnetic Intensity 90 mt, Motor 2.2 kW, Dimensions (A,B,C) 2600, 1200, 780 mm; Weight 2200 kg.
  T2: ≤9.5 kW, 120 mt, 2.2 kW, 2860, 1300, 900 mm; Weight 2730 kg.
  T3: ≤14.5 kW, 150 mt, 3 kW, 2900, 1660, 1000 mm; Weight 4100 kg.
• RCDD-10 (T series): Belt 1000 mm; Hoisting 300 mm.
  T1: ≤9.5 kW, 90 mt, 3 kW, 3100, 1500, 950 mm; Weight 3150 kg.
  T2: ≤14.5 kW, 120 mt, 3 kW, 3100, 1650, 1100 mm; Weight 4200 kg.
  T3: ≤19.5 kW, 150 mt, 4 kW, 3100, 1660, 1160 mm; Weight 5300 kg.
• RCDD-12 (T series): Belt 1200 mm; Hoisting 350 mm.
  T1: ≤12 kW, 90 mt, 4 kW, 3300, 1800, 1020 mm; Weight 4500 kg.
  T2: ≤17.5 kW, 120 mt, 4 kW, 3300, 1800, 1150 mm; Weight 6600 kg.
  T3: ≤24 kW, 150 mt, 5.5 kW, 3300, 1800, 1200 mm; Weight 8050 kg.
• RCDD-14 (T series): Belt 1400 mm; Hoisting 400 mm.
  T1: ≤18.5 kW, 90 mt, 4 kW, 3600, 2000, 1100 mm; Weight 8120 kg.
  T2: ≤21 kW, 120 mt, 5.5 kW, 3600, 2000, 1300 mm; Weight 8250 kg.
  T3: ≤35 kW, 150 mt, 5.5 kW, 3600, 2050, 1360 mm; Weight 9800 kg.
• RCDD-T Large and Medium Series — RCDD-16 (T series): Belt 1600 mm; Hoisting 450 mm.
  T1: ≤20.5 kW, 90 mt, 5.5 kW, 4000, 2180, 1200 mm; Weight 8050 kg.
  T2: ≤28.5 kW, 120 mt, 5.5 kW, 4000, 2180, 1350 mm; Weight 11260 kg.
  T3: ≤42 kW, 150 mt, 7.5 kW, 4000, 2180, 1450 mm; Weight 14800 kg.
• RCDD-18 (T series): Belt 1800 mm; Hoisting 500 mm.
  T1: ≤26 kW, 90 mt, 7.5 kW, 4500, 2510, 1390 mm; Weight 13100 kg.
  T2: ≤33.5 kW, 120 mt, 7.5 kW, 4500, 2510, 1480 mm; Weight 15600 kg.
  T3: ≤50 kW, 150 mt, 11 kW, 4500, 2510, 1560 mm; Weight 18600 kg.
• RCDD-20 (T series): Belt 2000 mm; Hoisting 550 mm.
  T1: ≤30 kW, 90 mt, 7.5 kW, 4900, 2650, 1480 mm; Weight 15000 kg.
  T2: ≤39.5 kW, 120 mt, 11 kW, 4900, 2650, 1550 mm; Weight 19000 kg.
  T3: ≤59 kW, 150 mt, 11 kW, 4900, 2650, 1660 mm; Weight 21500 kg.
• RCDD-22 (T series): Belt 2200 mm; Hoisting 600 mm.
  T1: ≤34 kW, 90 mt, 11 kW, 5300, 2800, 1500 mm; Weight 18500 kg.
  T2: ≤45.5 kW, 120 mt, 11 kW, 5300, 2800, 1650 mm; Weight 21500 kg.
  T3: ≤69 kW, 150 mt, 15 kW, 5300, 2800, 1785 mm; Weight 27100 kg.
• RCDD-24 (T series): Belt 2400 mm; Hoisting 650 mm.
  T1: ≤41.5 kW, 90 mt, 15 kW, 5700, 2900, 1650 mm; Weight 21500 kg.
  T2: ≤52 kW, 120 mt, 15 kW, 5700, 2900, 1780 mm; Weight 24800 kg.
  T3: ≤35 kW, 150 mt, 15 kW, 5700, 2900, 1890 mm; Weight 31900 kg.
