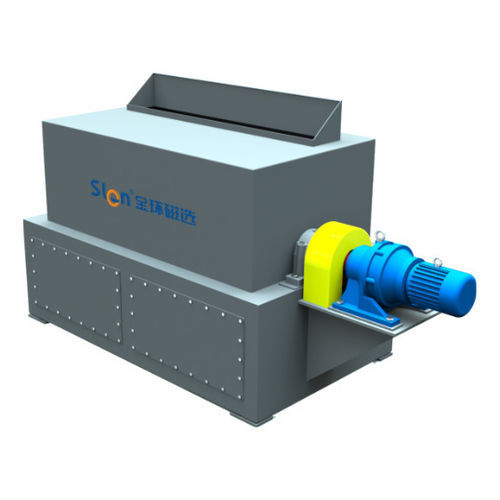

Dry materials separator SGTF series

magnetic drumfor orerotary

Product description:
The SGTF dry LIMS is a low-intensity dry magnetic drum separator designed for pre-concentrating low-grade magnetic minerals, removing magnetic contaminants from non-metallic ores, dry tailings processing and purification of sulphuric acid slag and iron concentrate powders.

Key features:

• No water required for processing, suitable for dry and closed-circuit operations;
• Multistage semicircular magnetic system enhances separation performance;
• Stepless drum speed regulation for flexible adjustment of processing parameters;

Design and operation:
The unit is composed of a rotating drum mechanism, supporting frame, gearbox and magnetic assembly. Material flows through the drum where semicircular magnetic poles generate a strong field that captures magnetic particles onto the drum surface. Captured particles are conveyed to the non-magnetic zone and discharged into the concentrate outlet by gravity and centrifugal force, while non-magnetic material exits via the tailings outlet.

Technical parameters:

• Available models: SGTF-612, SGTF-618, SGTF-712, SGTF-718, SGTF-918, SGTF-924, SGTF-1018, SGTF-1021, SGTF-1024, SGTF-1030, SGTF-1218, SGTF-1224, SGTF-1230, SGTF-1236, SGTF-1245
• Diameter range: 600–1200 mm
• Length range: 1200–4500 mm
• Speed range: 0–40 / 0–60 / 0–70 / 0–80 r/min depending on model
• Feed size: 0–12 mm
• Ore throughput range: 10–250 t/h
• Power range: 5.5–55 kW
• Weight range: 1.55–17 t

Typical model data:

• SGTF-612 — Diameter: 600 mm; Length: 1200 mm; Speed: 0–80 r/min; Feed size: 0–12 mm; Ore throughput: 10–15 t/h; Power: 5.5 kW; Weight: 1.55 t
• SGTF-618 — Diameter: 600 mm; Length: 1800 mm; Speed: 0–80 r/min; Feed size: 0–12 mm; Ore throughput: 15–25 t/h; Power: 7.5 kW; Weight: 1.70 t
• SGTF-712 — Diameter: 750 mm; Length: 1200 mm; Speed: 0–70 r/min; Feed size: 0–12 mm; Ore throughput: 20–35 t/h; Power: 7.5 kW; Weight: 2.2 t
• SGTF-718 — Diameter: 750 mm; Length: 1800 mm; Speed: 0–70 r/min; Feed size: 0–12 mm; Ore throughput: 35–45 t/h; Power: 11 kW; Weight: 3.3 t
• SGTF-918 — Diameter: 900 mm; Length: 1800 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 45–65 t/h; Power: 15 kW; Weight: 4.5 t
• SGTF-924 — Diameter: 900 mm; Length: 2400 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 65–80 t/h; Power: 18.5 kW; Weight: 5 t
• SGTF-1018 — Diameter: 1050 mm; Length: 1800 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 80–100 t/h; Power: 18.5 kW; Weight: 5.5 t
• SGTF-1021 — Diameter: 1050 mm; Length: 2100 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 100–120 t/h; Power: 22 kW; Weight: 6.5 t
• SGTF-1024 — Diameter: 1050 mm; Length: 2400 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 120–135 t/h; Power: 22 kW; Weight: 8 t
• SGTF-1030 — Diameter: 1050 mm; Length: 3000 mm; Speed: 0–60 r/min; Feed size: 0–12 mm; Ore throughput: 135–145 t/h; Power: 30 kW; Weight: 10.5 t
• SGTF-1218 — Diameter: 1200 mm; Length: 1800 mm; Speed: 0–40 r/min; Feed size: 0–12 mm; Ore throughput: 145–165 t/h; Power: 22 kW; Weight: 7 t
• SGTF-1224 — Diameter: 1200 mm; Length: 2400 mm; Speed: 0–40 r/min; Feed size: 0–12 mm; Ore throughput: 165–185 t/h; Power: 30 kW; Weight: 9 t
• SGTF-1230 — Diameter: 1200 mm; Length: 3000 mm; Speed: 0–40 r/min; Feed size: 0–12 mm; Ore throughput: 185–205 t/h; Power: 37 kW; Weight: 11.5 t
• SGTF-1236 — Diameter: 1200 mm; Length: 3600 mm; Speed: 0–40 r/min; Feed size: 0–12 mm; Ore throughput: 205–225 t/h; Power: 45 kW; Weight: 13.5 t
• SGTF-1245 — Diameter: 1200 mm; Length: 4500 mm; Speed: 0–40 r/min; Feed size: 0–12 mm; Ore throughput: 225–250 t/h; Power: 55 kW; Weight: 17 t
