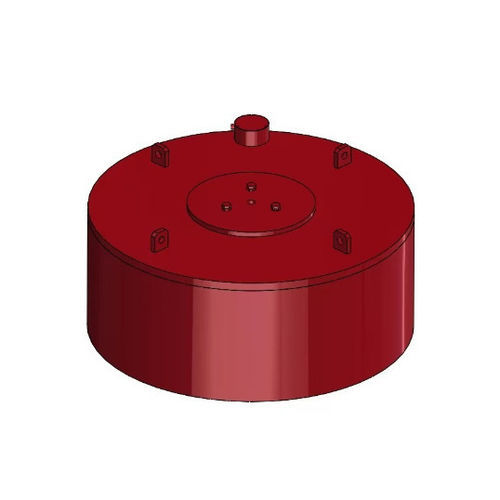

Magnetic chip remover RCDB series

Product Description
RCDB Disc Type Electromagnetic Iron Remover is an electromagnetic iron removal unit developed by SLon from long experience in magnetic separation equipment. It features a unique magnetic core and circuit design and uses thermally conductive, insulating materials. The RCDB family is intended for continuous iron removal on conveyor lines in heavy, light, precious and rare metal processing and for use in demanding environments.

Product Features

• Fully enclosed, fully filled construction with self-cooling: moisture‑proof and pollution‑resistant
• Good insulation and rapid heat dissipation
• High magnetic attraction and elevated iron removal rate
• Can be automated and program-controlled for stable operation

How it works
When energized, the electromagnet produces a strong, uniform magnetic field that penetrates the material layer on the conveyor. Ferrous particles are lifted from the bulk material and adhere to the bottom face of the disc separator. The RCDB is a manual-clean design: captured ferrous material remains attached until the system is de‑energized for scheduled cleaning.

Technical Parameters (table rows)
Header: Type, Cooling Method, Belt Width (mm), Rated Hoisting Height (mm), Excitation Power (kw), Magnetic Intensity (mt), Dimensions A (mm), C (mm), D (mm), F (mm), Weight (kg)
RCDB-5, Natural Cooling, 500, 150, ≤2, ≥70, A=854, C=455, D=600, F=420, Weight=545
RCDB-6, Natural Cooling, 650, 200, ≤3, ≥70, A=970, C=390, D=660, F=355, Weight=610
RCDB-8, Natural Cooling, 800, 250, ≤4, ≥70, A=1000, C=560, D=660, F=515, Weight=1080
RCDB-10, Natural Cooling, 1000, 300, ≤5, ≥70, A=1200, C=570, D=900, F=525, Weight=1410
RCDB-12, Natural Cooling, 1200, 350, ≤6.5, ≥70, A=1400, C=680, D=900, F=635, Weight=2090
RCDB-14, Natural Cooling, 1400, 400, ≤12, ≥70, A=1500, C=810, D=1200, F=790, Weight=3060
RCDB-16, Natural Cooling, 1600, 450, ≤14.5, ≥70, A=1600, C=930, D=1300, F=885, Weight=4400
RCDB-18, Natural Cooling, 1800, 500, ≤18, ≥70, A=1980, C=1000, D=1680, F=985, Weight=5400
RCDB-20, Natural Cooling, 2000, 550, ≤31.5, ≥70, A=2160, C=1010, D=1900, F=1000, Weight=6650

Note on variants
The product family also includes RCDB‑T medium and small series variants with multiple T1/T2/T3 configurations for base models RCDB‑6 through RCDB‑20. Variants provide different combinations of rated hoisting heights, excitation power limits and dimensional/weight values while maintaining natural cooling and typical magnetic intensity ≥70 mt. Full model rows and T‑variants are available on the product sheet.

Technical specifications

• Series: RCDB series
• Brand: SLon
• Cooling method: Natural cooling (self‑cooling design)
• Belt widths available: 500 mm to 2000 mm (model dependent)
• Rated hoisting height: typical range 150 mm to 550 mm (depends on model)
• Excitation power range: approx. ≤2 kW to ≤31.5 kW depending on model
• Magnetic intensity: ≥70 mt (typical for listed models)
• Dimensions and weights: vary by model (examples: RCDB‑5 weight 545 kg, RCDB‑10 weight 1410 kg, RCDB‑20 weight 6650 kg)
• Design: fully enclosed, moisture‑proof, pollution‑resistant, manual‑clean disc type
