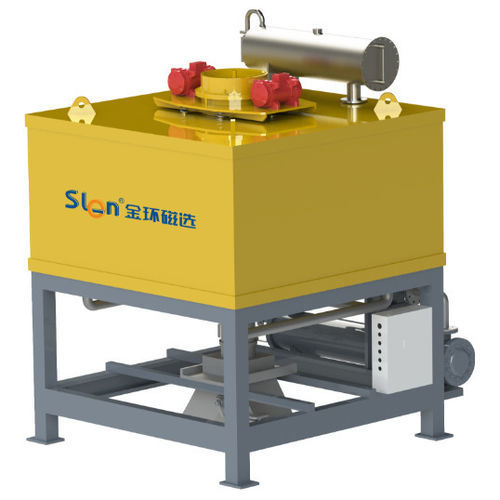

Powder separator SDGF series

high-gradient magneticdryfor fine material

Product Description
The SDGF series electromagnetic dry powder iron remover is a high-gradient magnetic separator designed to remove fine iron powder and weakly magnetic iron oxides from dry bulk powders. It is suitable for non-metallic minerals (quartz, feldspar, nepheline, kaolin, fluorite, lithium carbonate) and is widely used in the chemical, plastics and pharmaceutical industries for dry iron removal and powder purification.

Product Features

• High magnetic field intensity and extended sorting zone for efficient capture of fine and weakly magnetic particles;
• Magnetic matrix fitted with a vibration device to prevent clogging and to handle materials with poor flowability;
• Interchangeable, corrosion-resistant magnetic matrices adapted to different particle sizes;
• Stable, reliable operation with high level of automation for continuous industrial processing.

How does it work?
Power is supplied to the excitation coil to generate a high-gradient magnetic field in the sorting zone. Raw material is fed continuously; magnetic particles are captured by the magnetic matrix while non-magnetic particles pass through the gaps and fall into the concentrate box for discharge. Vibration on the magnetic matrix improves feeding and prevents blockage.

Technical Parameters (table)
Model | Magnetic Intensity (T) | Diameter (mm) | Current (A) | Power (kW) | Motor (kW) | Weight (kg) | Processing Capacity (t/h)
SDGF-250 | 0.4 | 250 | ≤75 | ≤14 | 0.37*2 | 2000 | 1-3
SDGF-250 | 0.6 | 250 | ≤75 | ≤26 | 0.37*2 | 3600 | 1-3
SDGF-250 | 0.8 | 250 | ≤75 | ≤38 | 0.37*2 | 6000 | 1-3
SDGF-430 | 0.4 | 430 | ≤125 | ≤20 | 0.8*2 | 4500 | 2-6
SDGF-430 | 0.6 | 430 | ≤150 | ≤38 | 0.8*2 | 8500 | 2-6
SDGF-430 | 0.8 | 430 | ≤210 | ≤58 | 0.8*2 | 14000 | 2-6
SDGF-600 | 0.4 | 600 | ≤130 | ≤30 | 1.1*2 | 9500 | 3-12
SDGF-600 | 0.6 | 600 | ≤170 | ≤52 | 1.1*2 | 14000 | 3-12
SDGF-600 | 0.8 | 600 | ≤235 | ≤80 | 1.1*2 | 20000 | 3-12
SDGF-800 | 0.4 | 800 | ≤120 | ≤38 | 2.2*2 | 14500 | 5-18
SDGF-800 | 0.6 | 800 | ≤190 | ≤72 | 2.2*2 | 21000 | 5-18
SDGF-800 | 0.8 | 800 | ≤260 | ≤95 | 2.2*2 | 30000 | 5-18

Technical specifications

• Series name: SDGF series
• Application: Dry removal and purification of fine iron powder and weakly magnetic iron oxides from powders; suitable for non-metallic minerals and for chemical, plastics and pharmaceutical industries
• Magnetic matrix: Vibration device for poor-flowability materials; corrosion-resistant magnetic materials; dedicated matrices for different particle sizes
• Automation and reliability: Designed for stable continuous operation with high automation
• Available models and key specs: SDGF-250 (φ250 mm, motor 0.37*2 kW, weight 2000/3600/6000 kg, capacity 1–3 t/h); SDGF-430 (φ430 mm, motor 0.8*2 kW, weight 4500/8500/14000 kg, capacity 2–6 t/h); SDGF-600 (φ600 mm, motor 1.1*2 kW, weight 9500/14000/20000 kg, capacity 3–12 t/h); SDGF-800 (φ800 mm, motor 2.2*2 kW, weight 14500/21000/30000 kg, capacity 5–18 t/h).
