Up to 4 RS232 interfaces with D-Sub 9
CAN interface acc. to ISO 11898
Complies with the CANopen specification acc. to CiA
24 V DC supply with 3-pole phoenix clamp
Baud rate and module address configurable via HEX switch
Status LED display for module status, CAN and each RS232 channel with Rx- and Tx-display

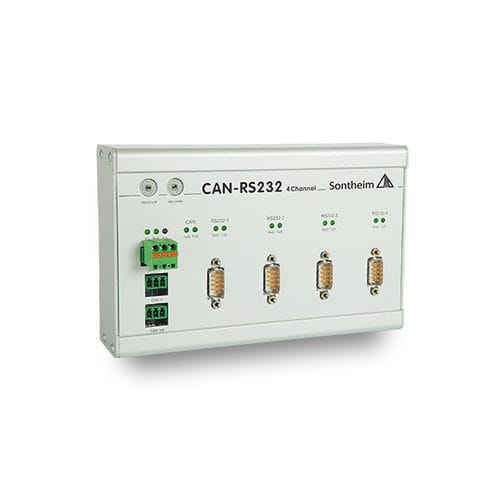

The aluminium module is extremely compact and offers the possibility of top hat rail mounting. All interfaces and switches for configuration are quickly and conveniently available on the front panel. For example, the baud rate and module address can be set conveniently on the front panel and read off at any time.
Signal processing
In addition to the interfaces, the interface converter has a powerful microcontroller which handles the acquisition of the sensors, the control of the actuators and the CAN protocol.
CAN interface
The integrated CAN interface enables flexible use at different points and positions in the production process and is designed according to ISO 11898.
